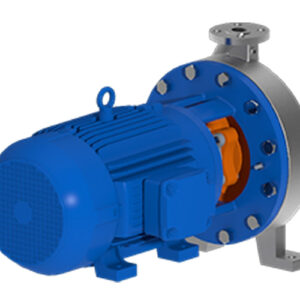

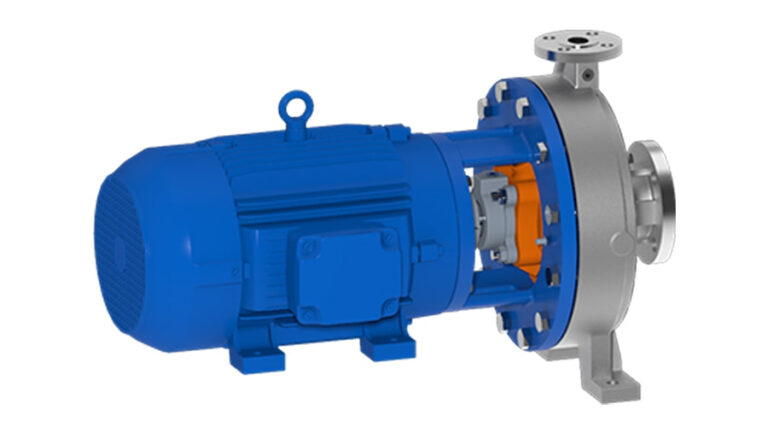

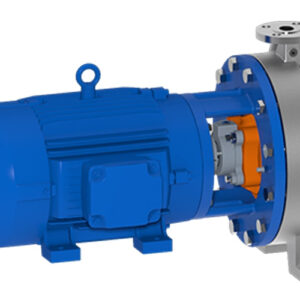

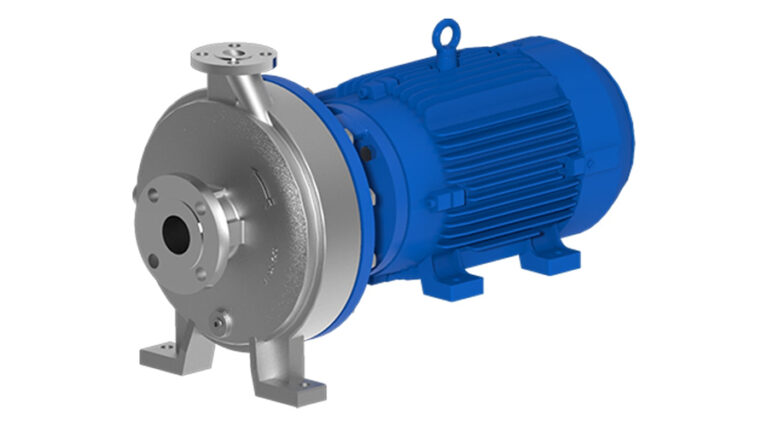

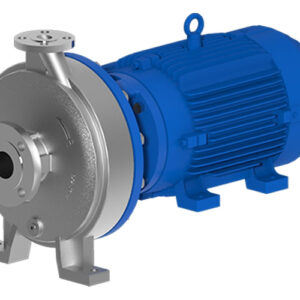

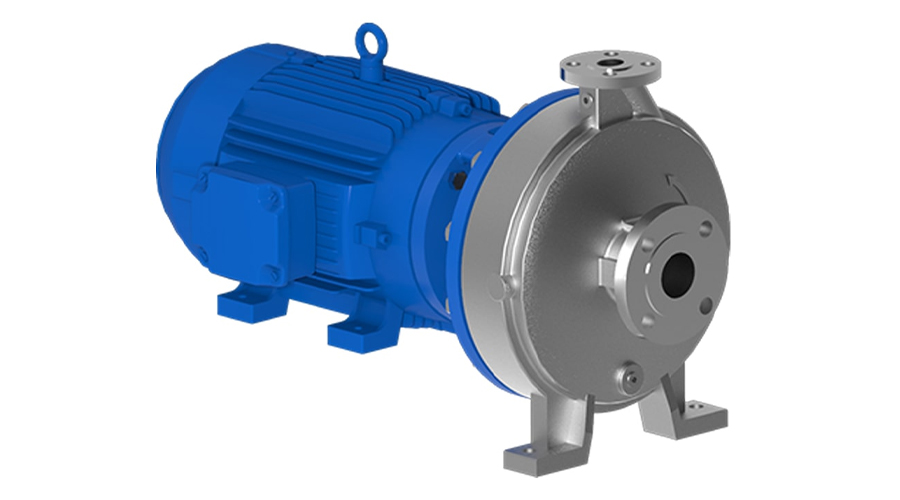

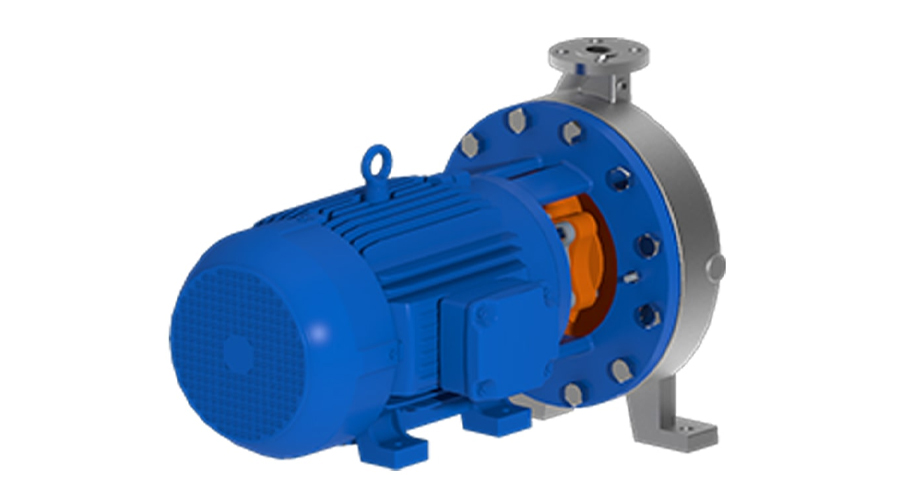

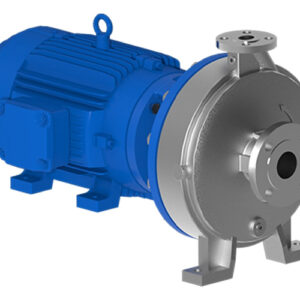

1296LF Series Close Coupled Pumps

Rotech 1296LF Series Low Flow ANSI Close Coupled Pumps are designed to provide an option to ANSI Frame-mounted pumps.   The Liquid End Pump parts are coupled with NEMA or IEC Electric Motors.

This series uses the same Hydraulic pump casing, Impeller, and stuffing box cover of the regular ANSI Low flow pump series.

Add to wishlist
Categories: , ,

Description

Product Specifications /Features
Manufactured to meet ANSI/ASME B73.1 standard
Compact Design , Space Saving
Same Hydraulic Performance of ANSI Pumps
Close coupled with NEMA or IEC Electric Motors
No Restriction on Sealing Options
Standard, Large, and Taper bore Stuffing box covers
Available in various material of Constructions Like Ductile Iron, Carbon Steel, 316SS, CD4MCUN, Alloy 20, Hastelloy B, C, and others
Applications
Water, Waste water
Chemical, petro Chemical
HVAC
Condensate
High Pressure Process
Sea Water

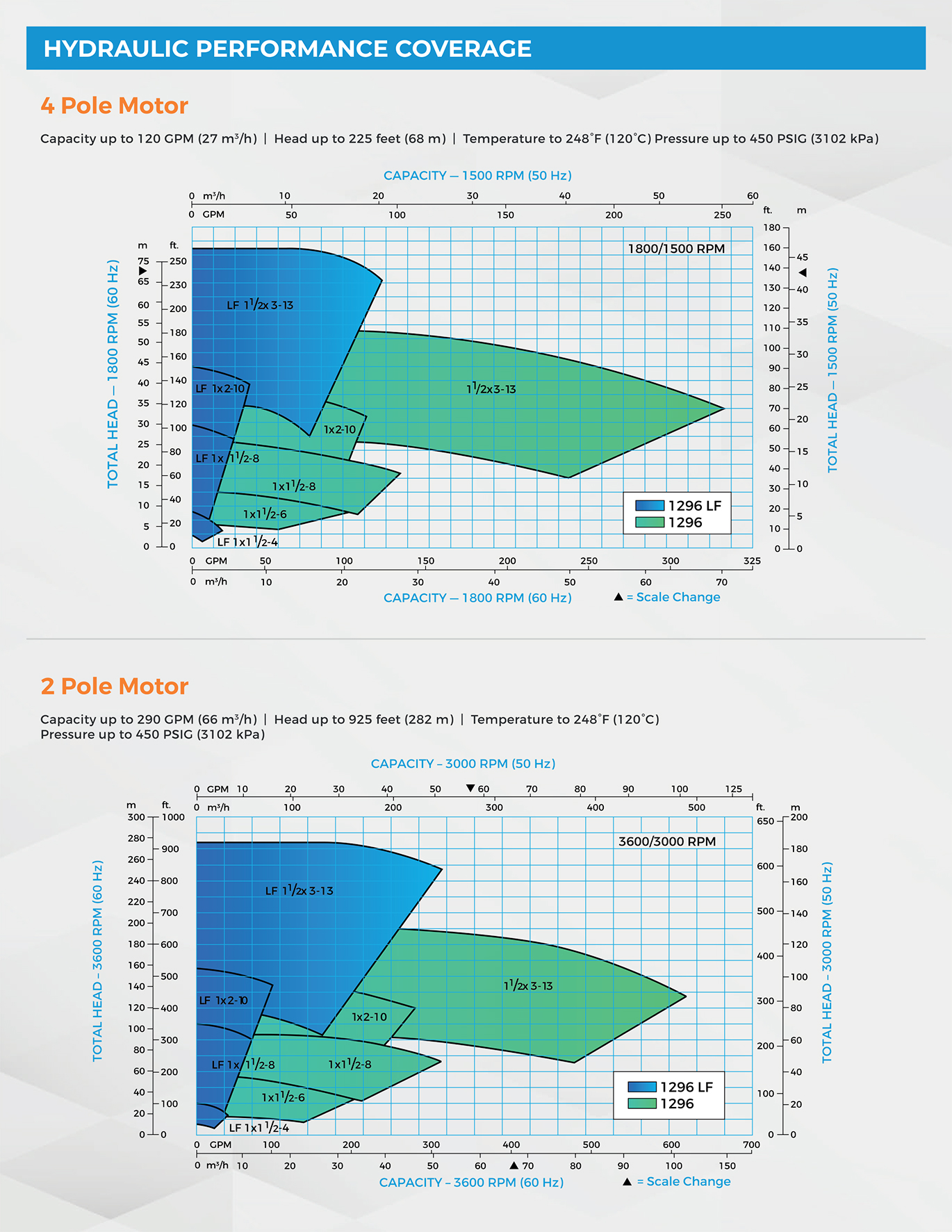

Design Specification
Max Flow Rate
290 GPM (66 m3/h)
Max Head
925 feet (282 m)
Max Temperature
248° F (120° C)
MAX PRESSURE
175 PSIG (26 bar)
AVAILABLE MATERIALS
Ductile Iron
Carbon Steel
316 Stainless Steel
CD4MCu
Download
Brochure

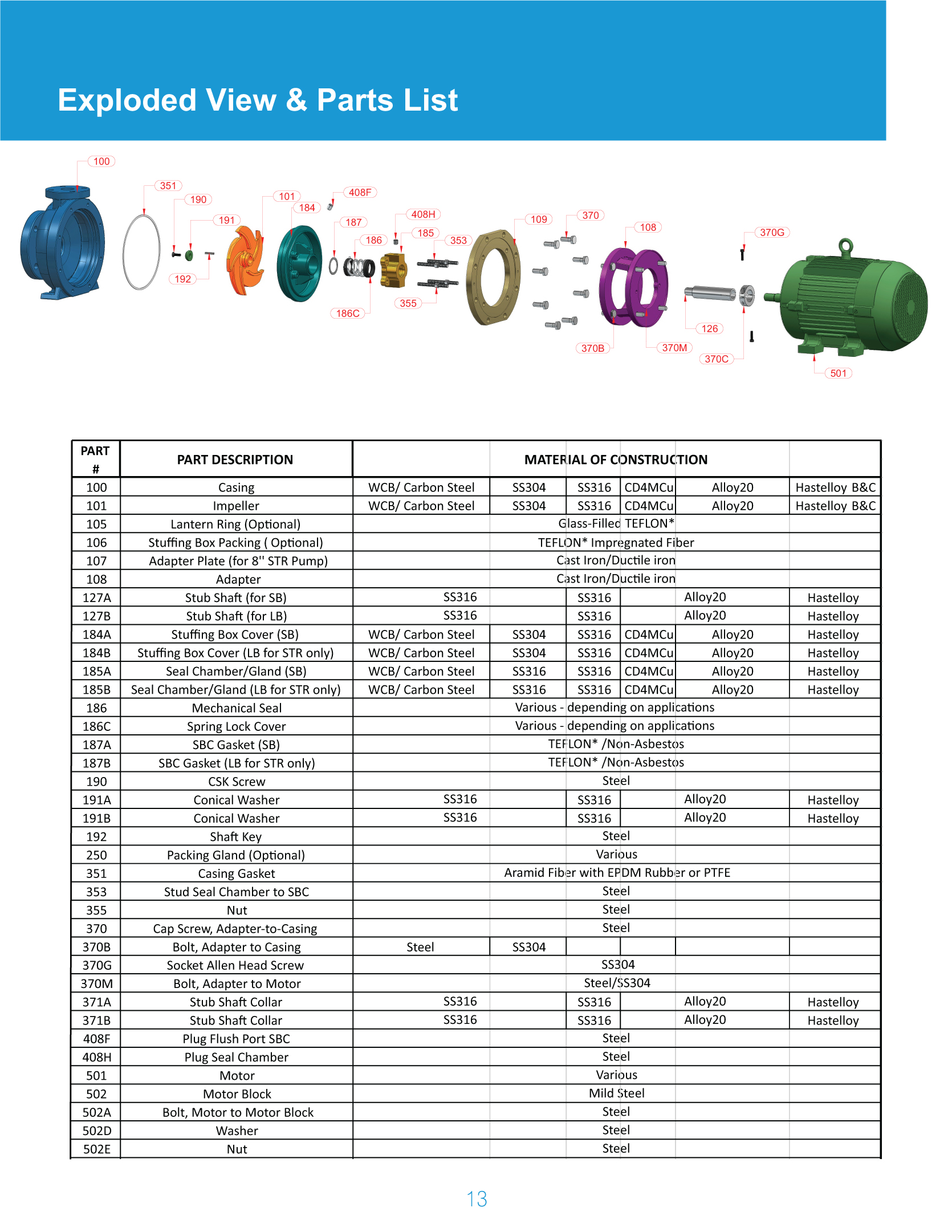

Manual
