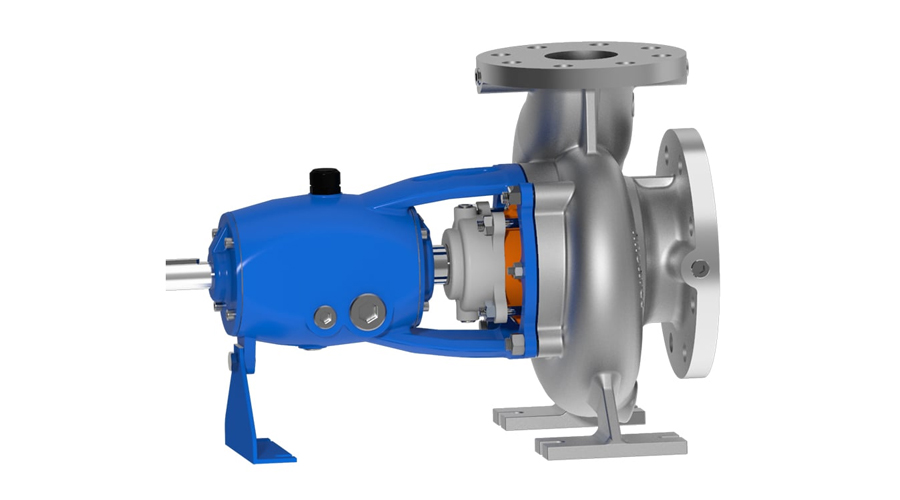

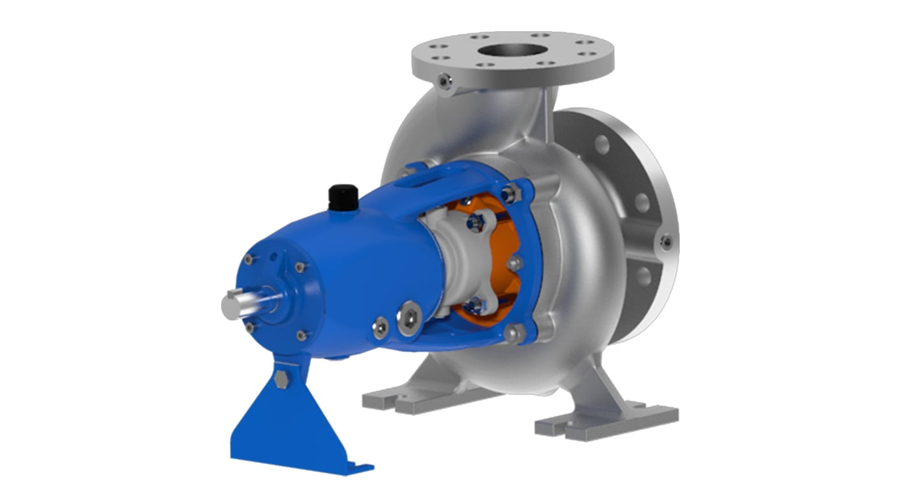

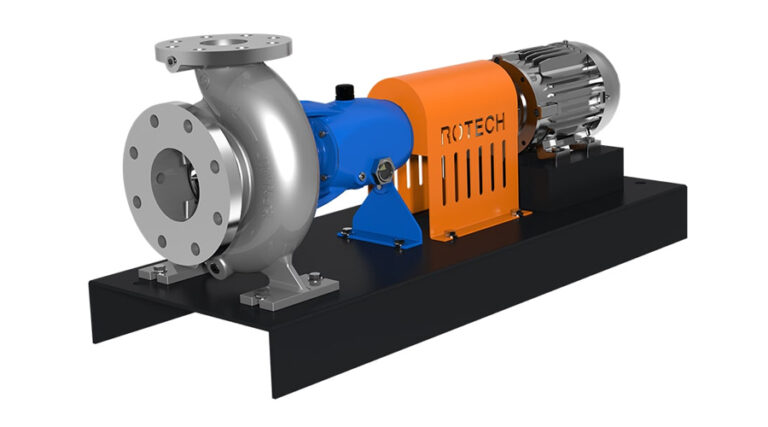

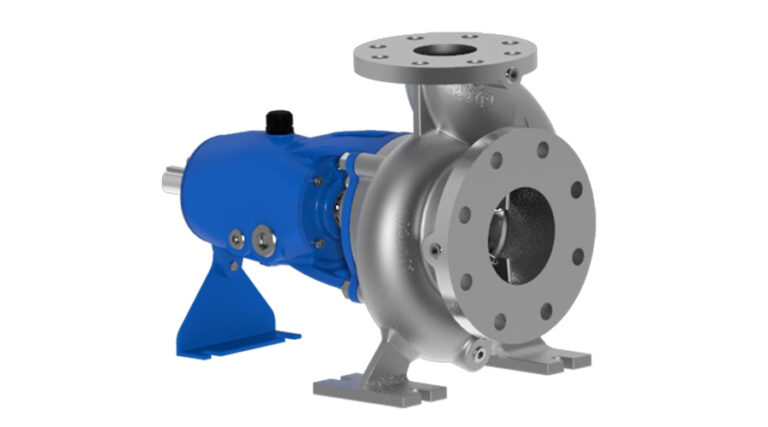

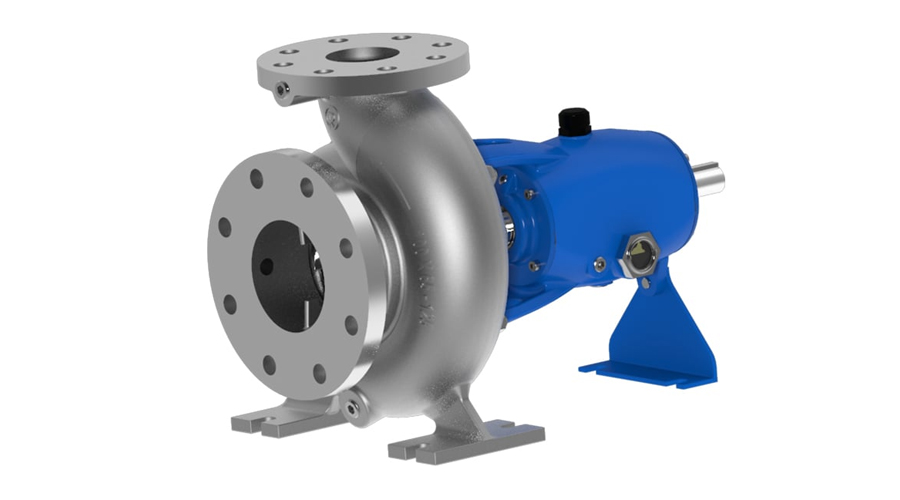

RoChem Series Frame Mounted Pumps

Rochem Series End Pumps are designed with a closed impeller and conforms to ISO 5199 / ISO 2858.

These are highly efficient pumps and available in various Materials of constructions such as CI, DI, Stainless Steel and Its alloys, Duplex and Super Duplex steel, Nickel based Alloys, Titanium and other Exotic Materials.

Add to wishlist
Categories: , ,

Description

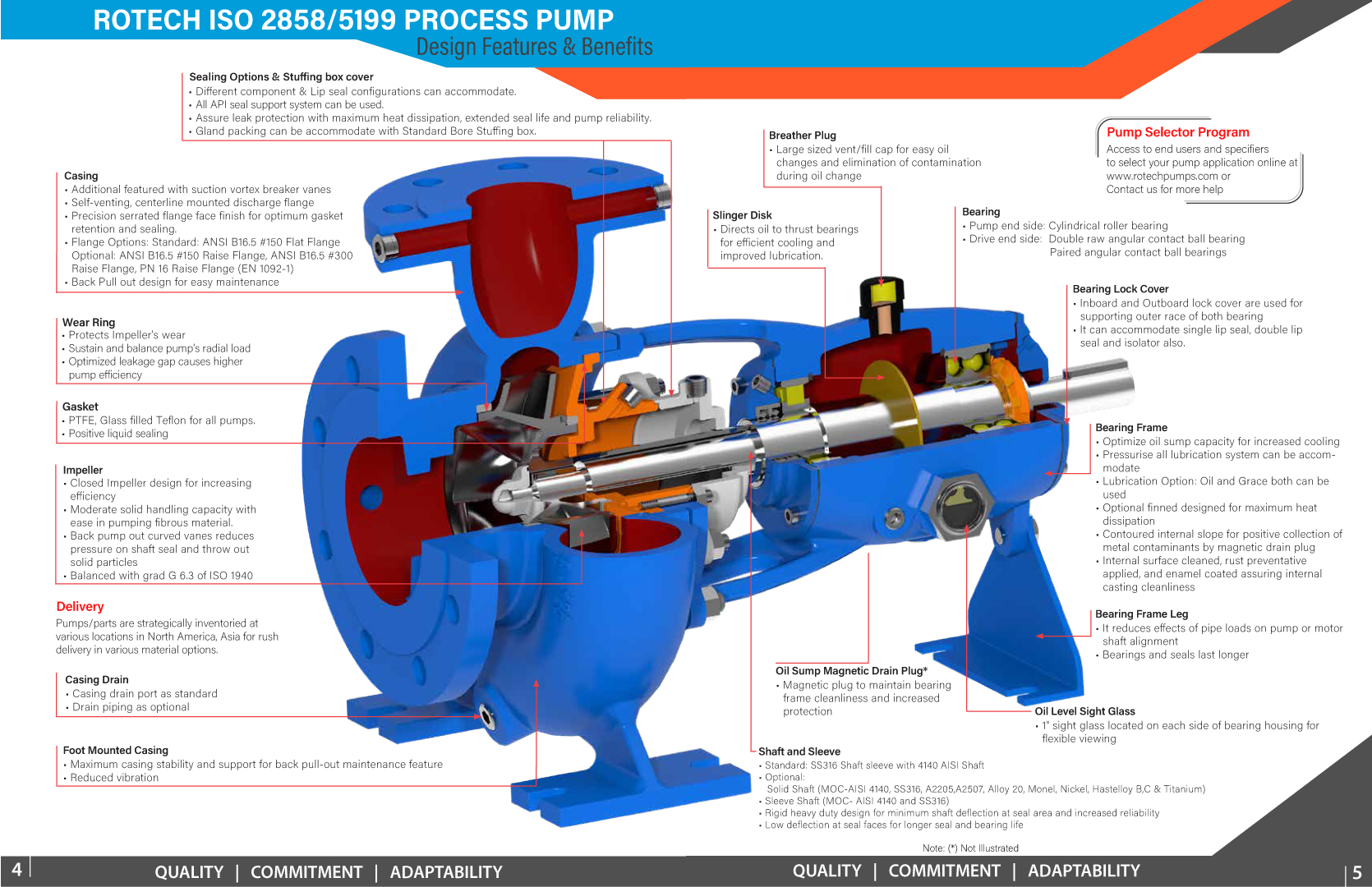

Product Feature
Maximum number of Duty Points are Covered
Superior in Overall Pump efficiencies
Cost Effective solution with various options in Sealing Systems, Bearings and Shafts
Technically comply with ISO 5199 and Dimensionally comply with ISO 2858
Casing are available with standard foot mounted and Centerline mounted design as an Optional. Flange Options: Standard PN 16 RF (EN 1092-1), Optional PN 25 RF (EN 1092-1) ANSI B16.5 150RF# 300RF#
Lubrication : Oil Lubrication (Standard), Grease Lubrication (Optional)
Application
Chemical Industry
Oil Process industries
Food & Beverage industry
Alcohol industry
Fossil- Fueled power stations
Petrochemical industry
Paper-Pulp industry
Refinery
Sugar industry

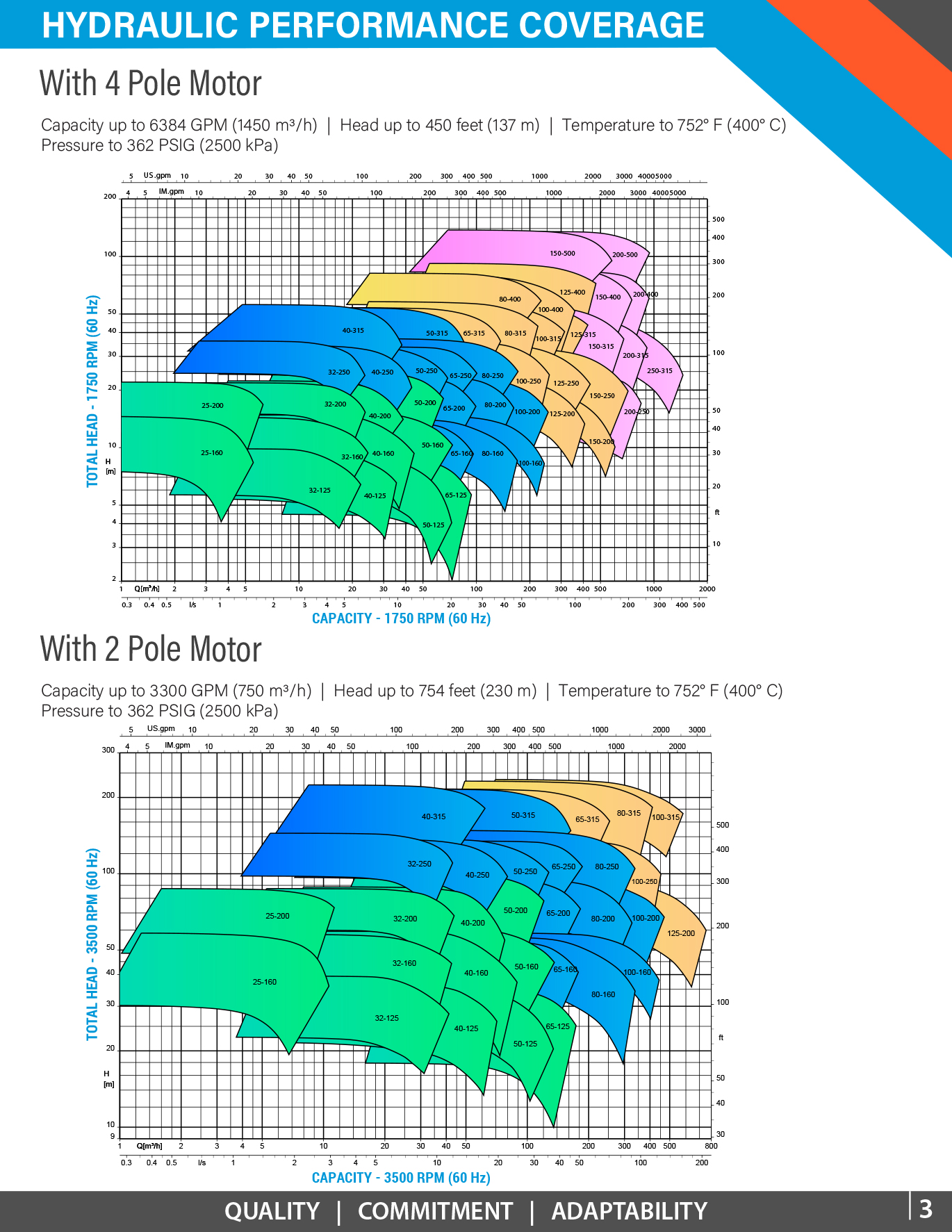

Design Specification
Max Flow
Up to 6384 GPM (1450 m3/hr.)
Max Head
Up to 450 ft. (130 m)
Temperature
Up to 752°F (400°C)
Pressure
Up to 362 PSIG (2500 kPa)
Download
Brochure
