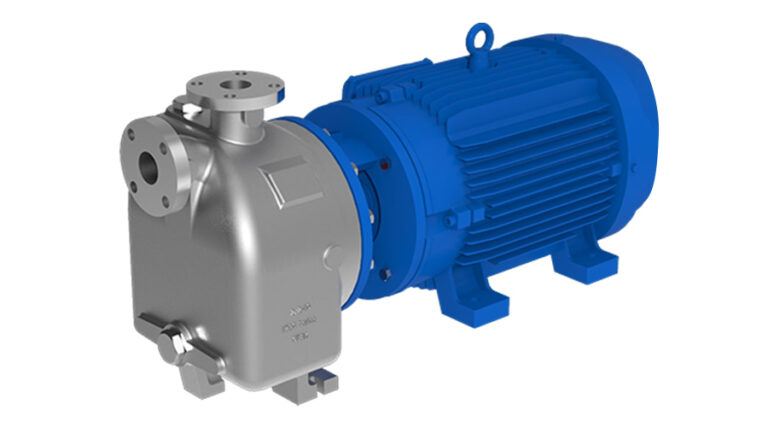

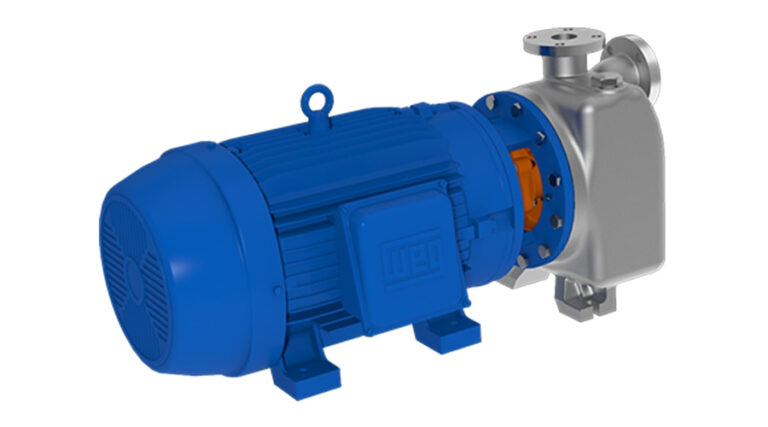

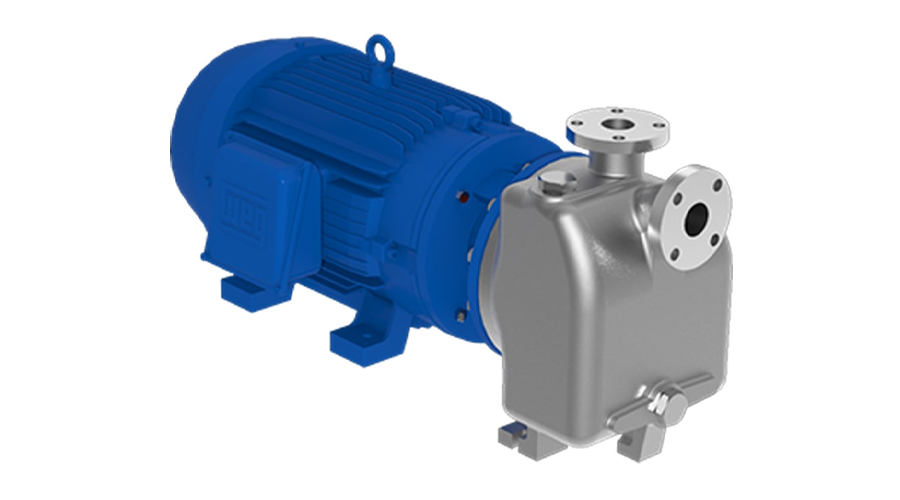

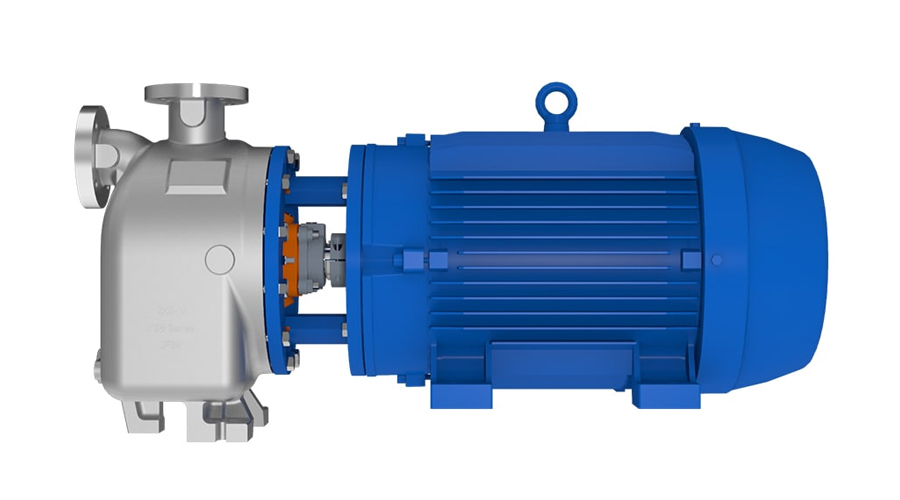

1796CC Series Close Coupled Pumps

Rotech 1796 Series Self Priming ANSI Close Coupled Pumps are designed to provide an option to ANSI Self Priming Frame-mounted pumps. The Liquid End Pump parts are coupled with NEMA C face Electric Motors.

This series uses the same Hydraulic pump casing, Impeller, and stuffing box cover as the regular ANSI Self priming pump series.

Add to wishlist
Categories: , ,

Description

Product Specifications /Features
Manufactured to meet ANSI/ASME B73.1 standard,
Compact Design , Space Saving
Use Same hydraulic of ANSI , meets duty points
Close coupled with NEMA C face motors
Various sealing options including, Gland packed , single and double components and cartridge seals
Standard, large, and taper bore Stuffing box covers
100% interchangeable other ANSI pump parts
Available in various material of Constructions Like, Carbon Steel, 316ss, CD4MCUN, Alloy 20, Hastelloy B, C, and many other materials of constructions
Applications
Water , Waste water
Chemical , Petro Chemical
Oil & Gas
HVAC
Condensate
High Pressure Process
Sea Water
Design Specification
Max Flow Rate
800 GPM
Max Head
300 feet
Max Temperature
500° F (260° C)
Max Pressures:
375 PSIG (2586 kPa)
Effective static lift
Up to 20 feet (6 m)
AVAILABLE MATERIALS
Carbon Steel
316 Stainless Steel
Alloy 20
CD4MCu
Hastelloy B , C
AND Many other MOC
Design Features
One-piece casing with integral priming and air separation
Positive retention of pumpage under siphon conditions
Rapid priming time
 No suction check valve required
Self-purge of vapors
