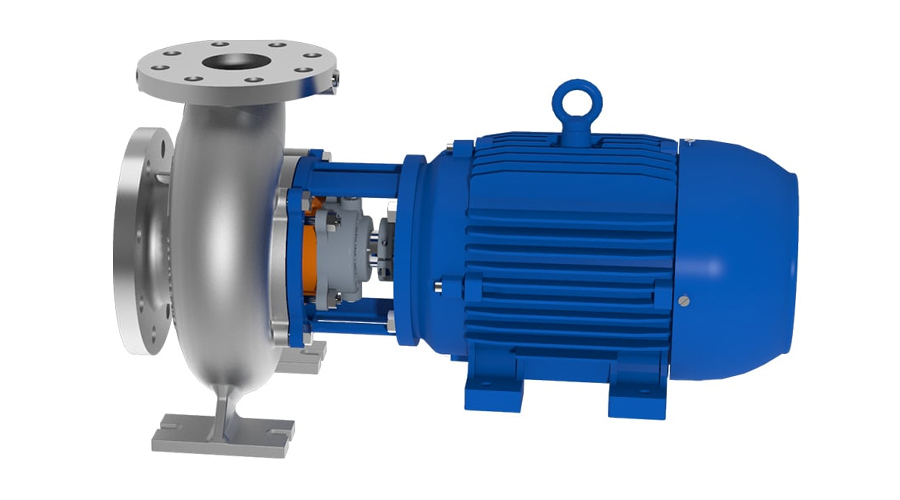

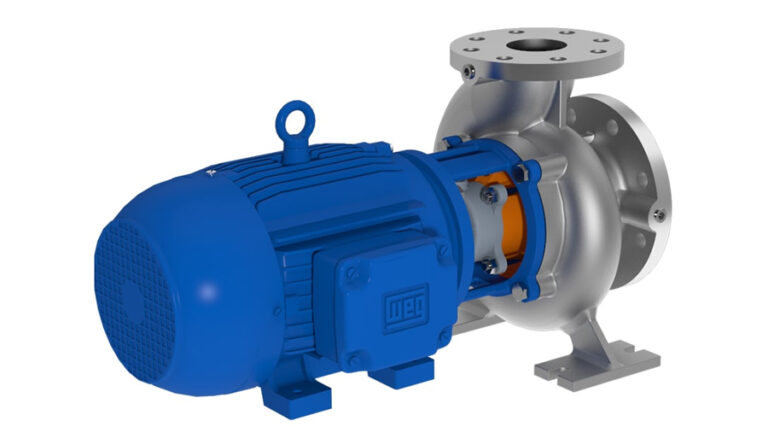

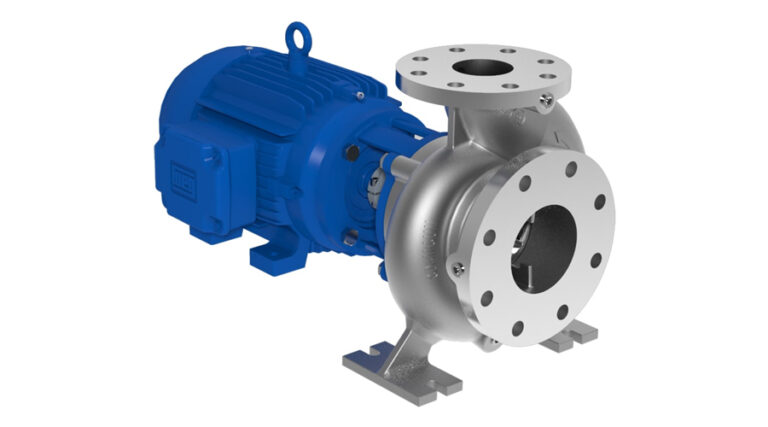

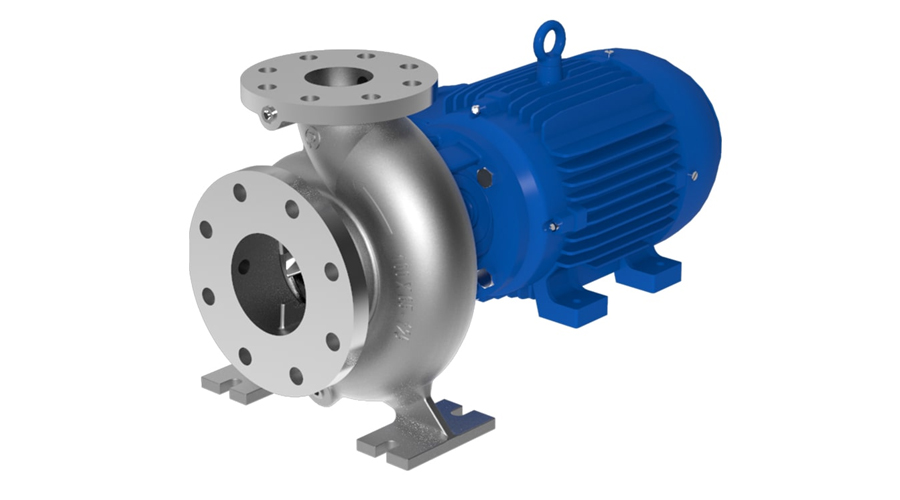

RoChem CC Series Close Coupled Pumps

RoChem Series Close Coupled Pumps are designed with a closed impeller and conforms to ISO 5199 / ISO 2858. These are highly efficient pumps and available in various Materials of constructions such as CI, DI, Stainless Steel and Its alloys, Duplex and Super Duplex steel, Nickel based Alloys, Titanium, and other Exotic Materials.

Add to wishlist
Categories: , ,

Description

Design Specification
Max Flow Rate
Up to 6384 GPM (1450 m3/hr.)
Max Head
Up to 450 ft. (130 m)
Max Temperature
Up to 752°F (400°C)
Up to 362 PSIG (2500 kPa)
Up to 362 PSIG (2500 kPa)
Product Specifications /Features
Maximum number of Duty Points are Covered
Superior in Overall Pump efficiencies
Compact design ,Space Saving
Technically comply with ISO 5199 and dimensionally comply with ISO 2858
Flexible use due to modular design
Close Couple with NEMA/IEC motors
Interchangeable with RoChem series pump parts.
Flange Options:
Available in various material of Constructions Like Ductile Iron, Carbon Steel, 316ss, CD4MCUN, Alloy 20, Hastelloy B, C and many other material of constructions
Flange Options:
Standard: PN 16 Raise Flange (EN 1092-1)
Optional :
ANSI B16.5 #150 Flat Flange
ANSI B16.5 #150 Raise Flange
ANSI B16.5 #300 Raise Flange
Application
Chemical Industry
Oil Process industries
Food & Beverage industry
Alcohol industry
Fossil- Fueled power stations
Petrochemical industry
Paper-Pulp industry
Refinery
Sugar industry
Download
Brochure
