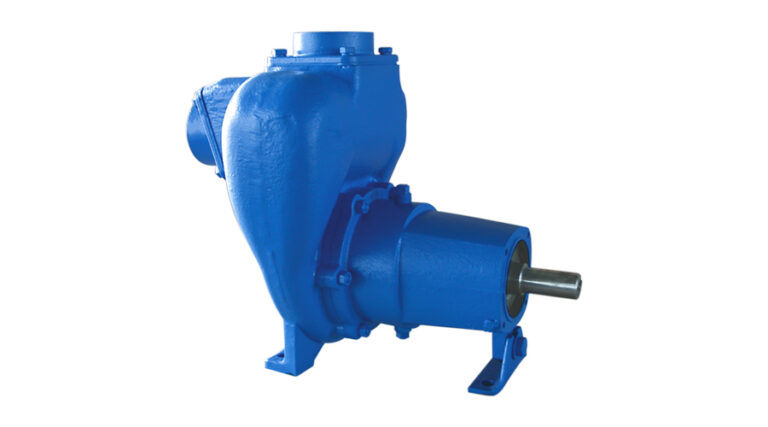

SFP Series Frame Mounted Pumps

SFP series pumps are designed for pumping water ,waster water and light slurry liquids. The pumps are End suction horizontally mounted & back pullout design. The Pumps are supplied in 1.5”x 1.5”, 2”x 2”, 3”x 3”sizes with NPT threaded connection

Add to wishlist
Category:

Description

Introduction of Pump
Rotech RFP series Pumps are self-priming centrifugal frame mounted or Base mounted Pumps directly couple with coupling or V belt pulley drive wither with motor or engine.
SFP series are capable to lift liquid up to 25ft form the liquid level below ground. However, for the best performance of pump, the pump should be installed less than 15ft above the liquid level. The flapper valve will maintain a full column liquid in suction pipeline.
Standard features include stainless steel drive sleeve, stainless steel fasteners, renewable, renewable wear plate, and a semi-open dynamically balanced impeller. Option Include double grease-lubricated seals, stainless steel impeller and seals for all types of abrasive and/or corrosive services.
The ROTECH series of pumps are commonly used in water, waste water, Industrial, transfer pump application, wash down, OEM, Agricultural, Fertilizer and Pesticide Pumps, Applicators & Sprayers, ,Bulk Tran self Pumps and much more.
Features
Available in NPT Connection as standard, BSP connection as an optional
Self priming capability,
Directly close coupled with NEMA C face motors, compact in design
Can be supplied with single phase and 3 phase motors
Type 21 seals in various material of construction
Download
Brochure
