SCP Self-Priming Pumps

SCP series pumps are End suction self -priming Pumps and designed for pumping water, waste water and light slurry liquids. The pumps are End suction Self priming Pumps with horizontally mounted & back pullout design. The Pumps are supplied in 1.5”x 1.5”, 2”x 2”, 3”x 3” sizes with NPT threaded connections.

Add to wishlist
Categories: ,

Description

Product Specifications /Features
Rotech SCP series Pumps close coupled self-priming centrifugal pump can be mounted with NEMA C face electric motor frames (56C, 145TC, 182TC etc.), IEC electric motors and Hydraulic Motors.
SCP series are capable of lifting liquid up to 25ft from the liquid level below ground. However, for the best performance of the pump, the pump should be installed less than 15ft above the liquid level. The flapper valve will maintain a full column liquid in the suction pipeline.
Standard features include stainless steel drive sleeve, stainless steel fasteners, renewable, renewable wear plate, and a semi-open dynamically balanced impeller. Option Include double grease-lubricated seals, stainless steel impeller and seals for all types of abrasive and/or corrosive services.
Design Specification
Flow
Up to 200 GPM
Head
Up to 80 FT
Sizes
1.5”, 2”, 3”
Applications
Water , Waste water
HVAC
Condensate
Sea Water
Download
Brochure
SCP 150 150-1.5'' X 1.5'' Self Priming Centrifugal Pump
Dimensional Drawings
Performance Curves
SCP 300-2''X2'' Self Priming Centrifugal Pump
Dimensional Drawings Of SCP 300
Performance Curves
SCP 200-2''X2'' Self Priming Centrifugal Pump
Dimensional Drawings Of SCP 200

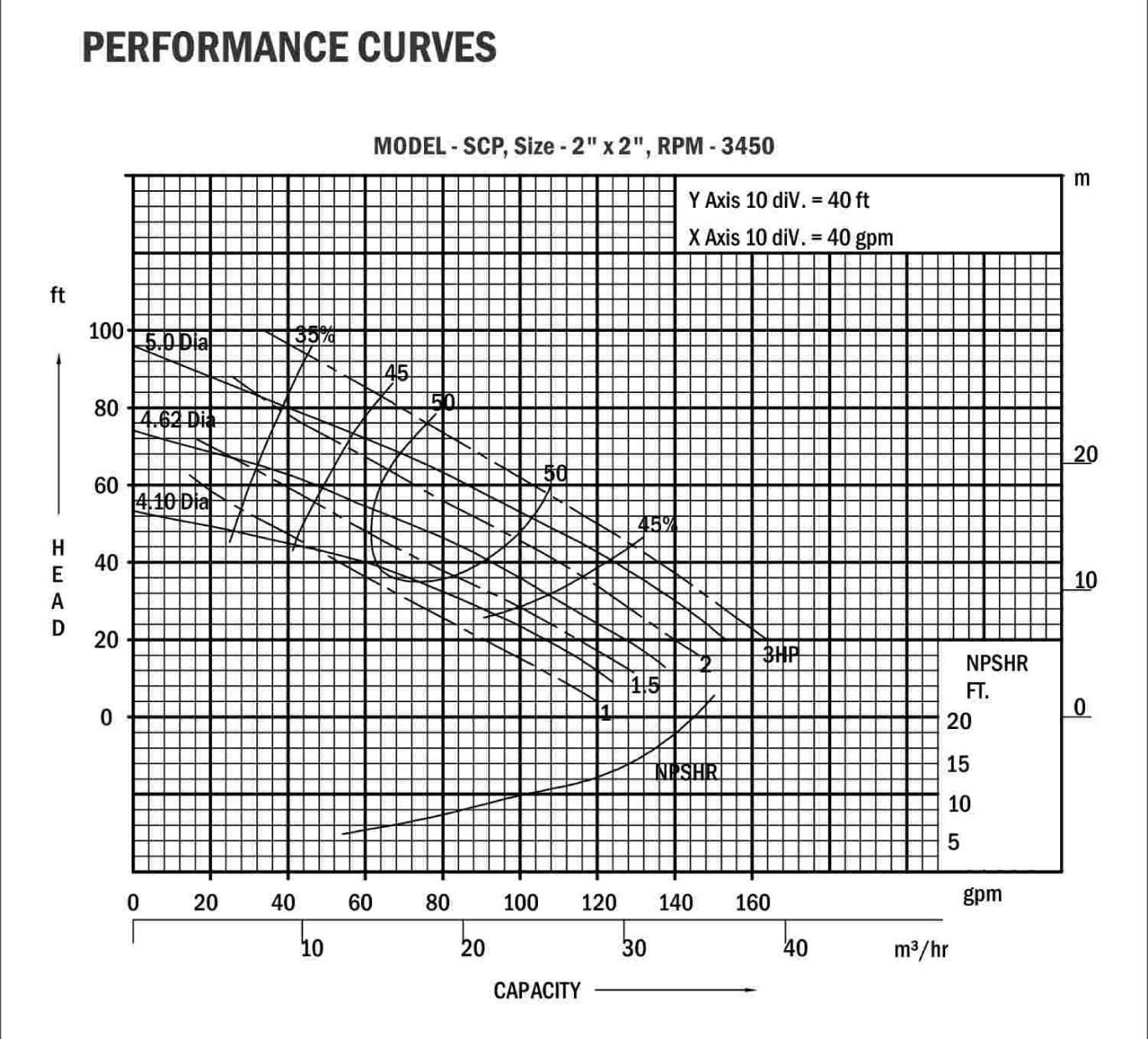

Performance Curves

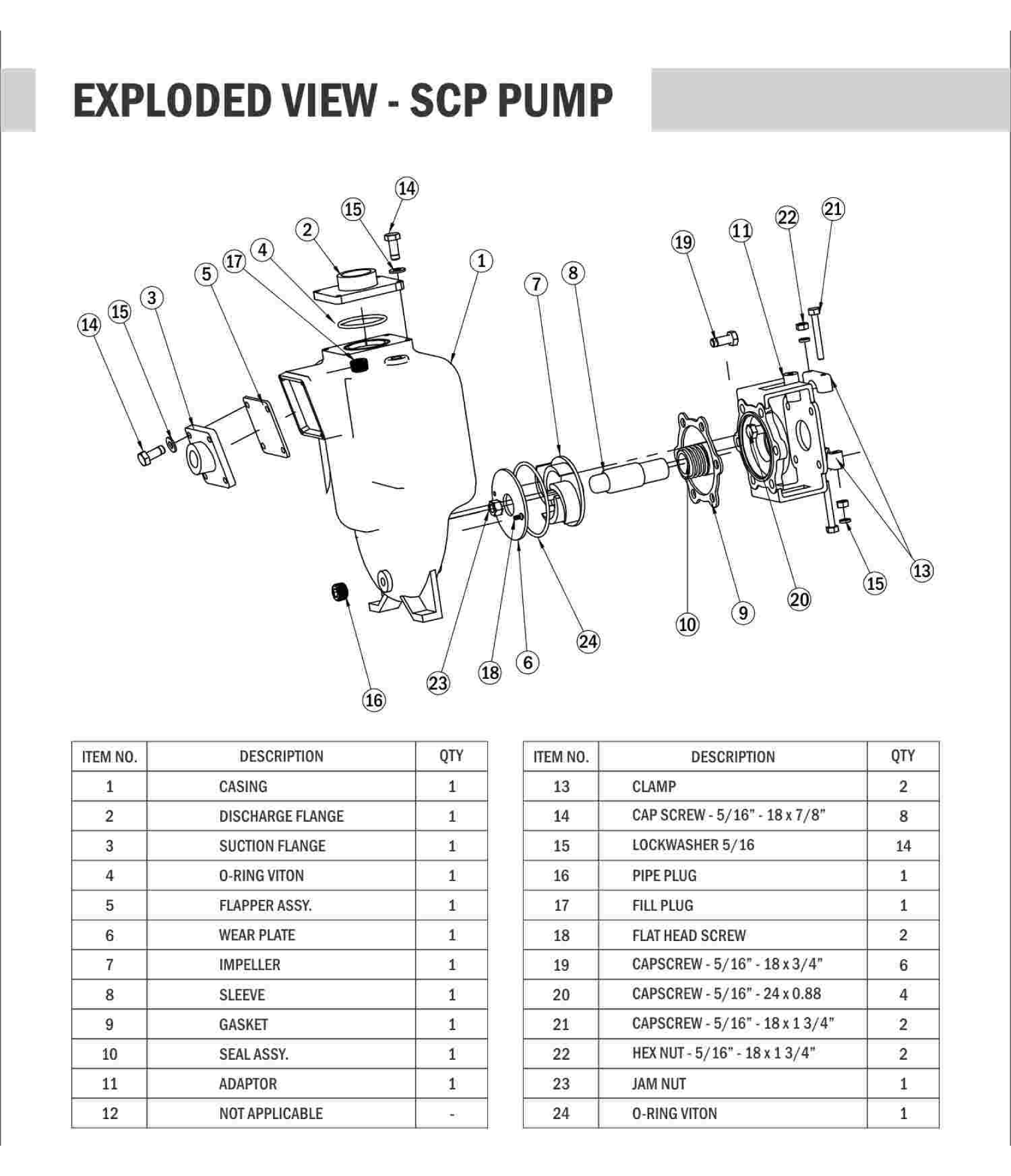

Exploded View
Rotech SCP Pump
