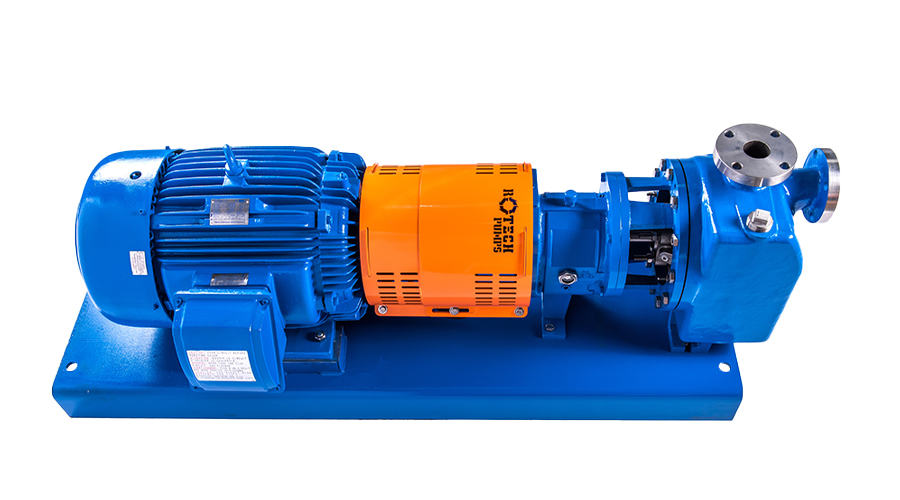

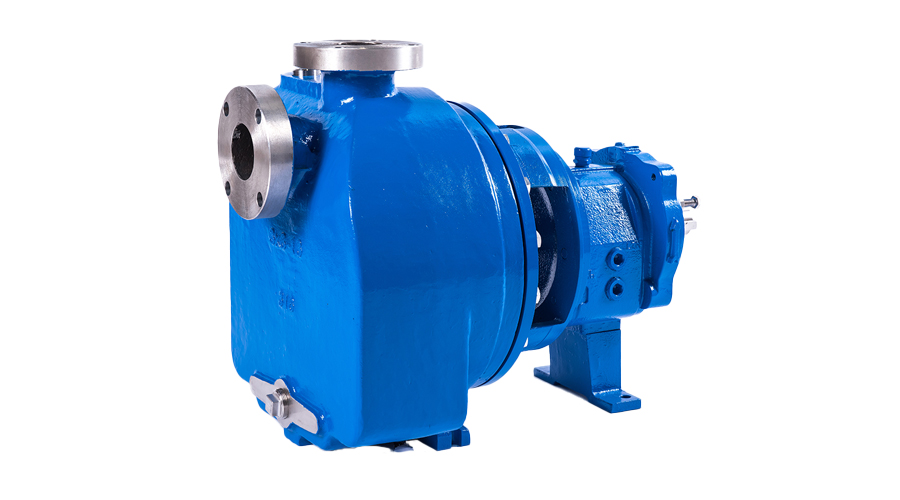

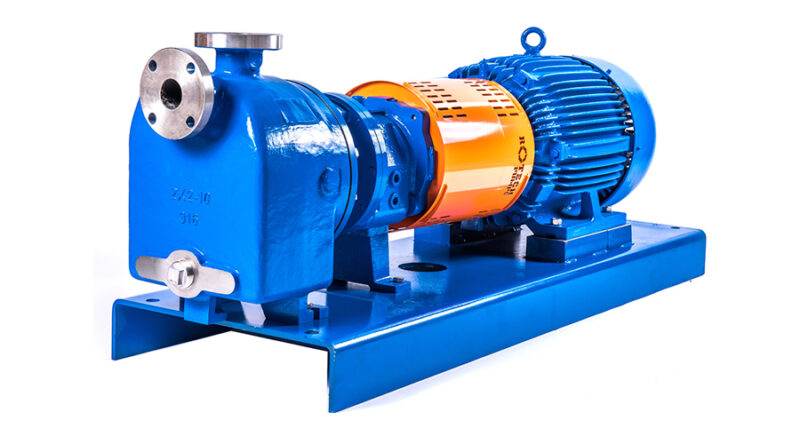

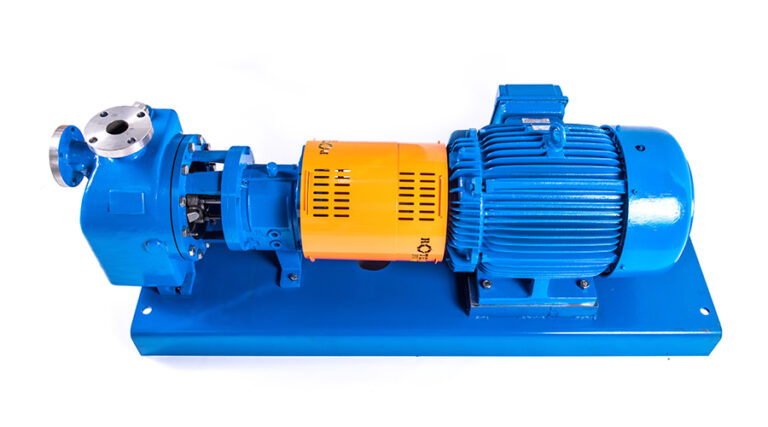

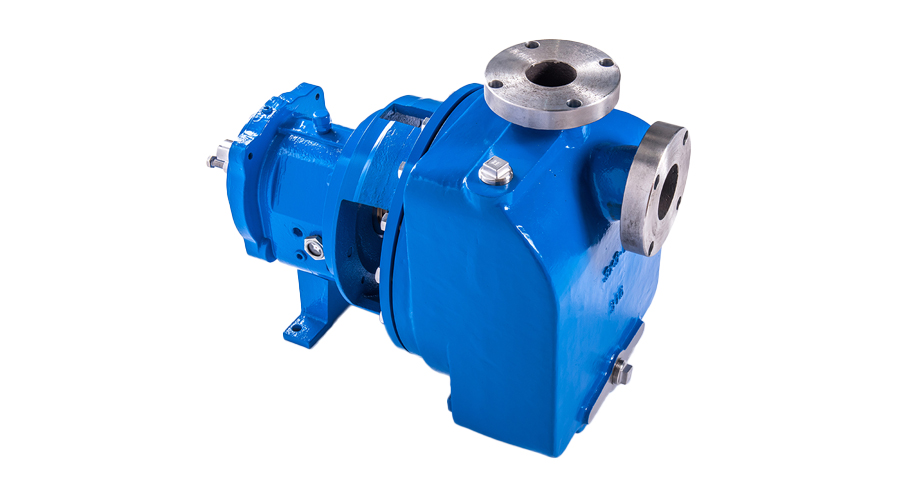

1796 Series Self Primer Pumps

1796 Series ANSI Self priming pumps are designed with semi-open impellers and used in various Heavy duty Industrial Applications.

Rotech ANSI Self priming pumps are directly interchangeable with other make of ANSI Self priming pumps i.e. Goulds 3796, Summit 2796.

Add to wishlist
Categories: , , , , ,

Description

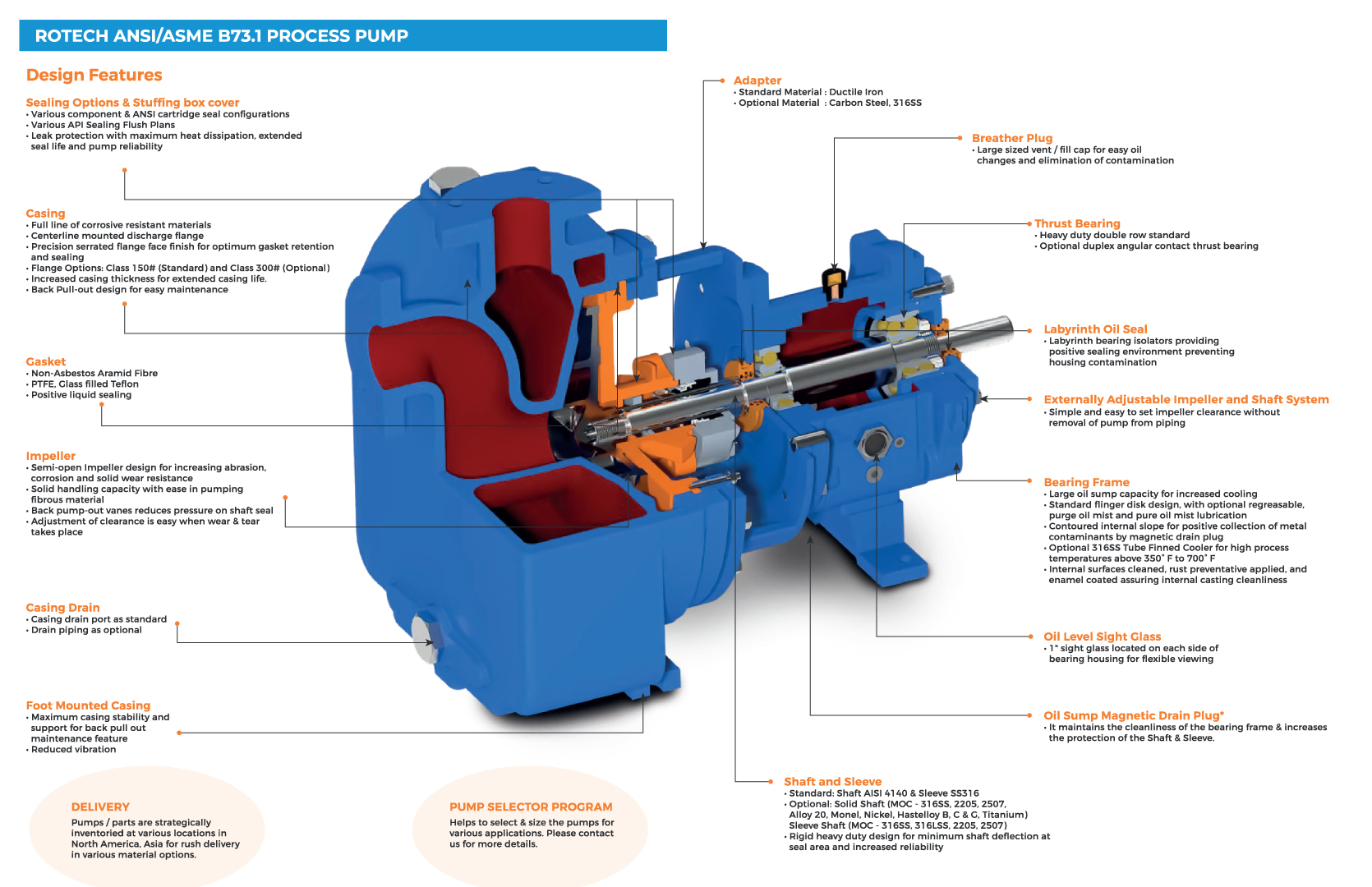

Product Specifications /Features
Manufactured to meet ANSI/ASME B73.1 standard, Self Priming Applications
SKF bearings installed as a standard.
Bronze bearing isolators
Standard, large and taper bore Stuffing box covers
External impeller adjustment
Open impeller design
100% interchangeable with Gould's ANSI Self Priming Pump series 3796 and Summit 2796
Various shaft and shaft sleeve combinations
Available in various material of Constructions Like Ductile Iron, Carbon Steel, 316ss, CD4MCUN, Alloy 20, Hastelloy B, C, and many other materials of constructions
Applications
Oil & Gas
Petrochemical & refineries
Boiler Feed
Condensate
High Pressure Process
Column Reflux & Column Bottoms
Hot Oil
Sea Water

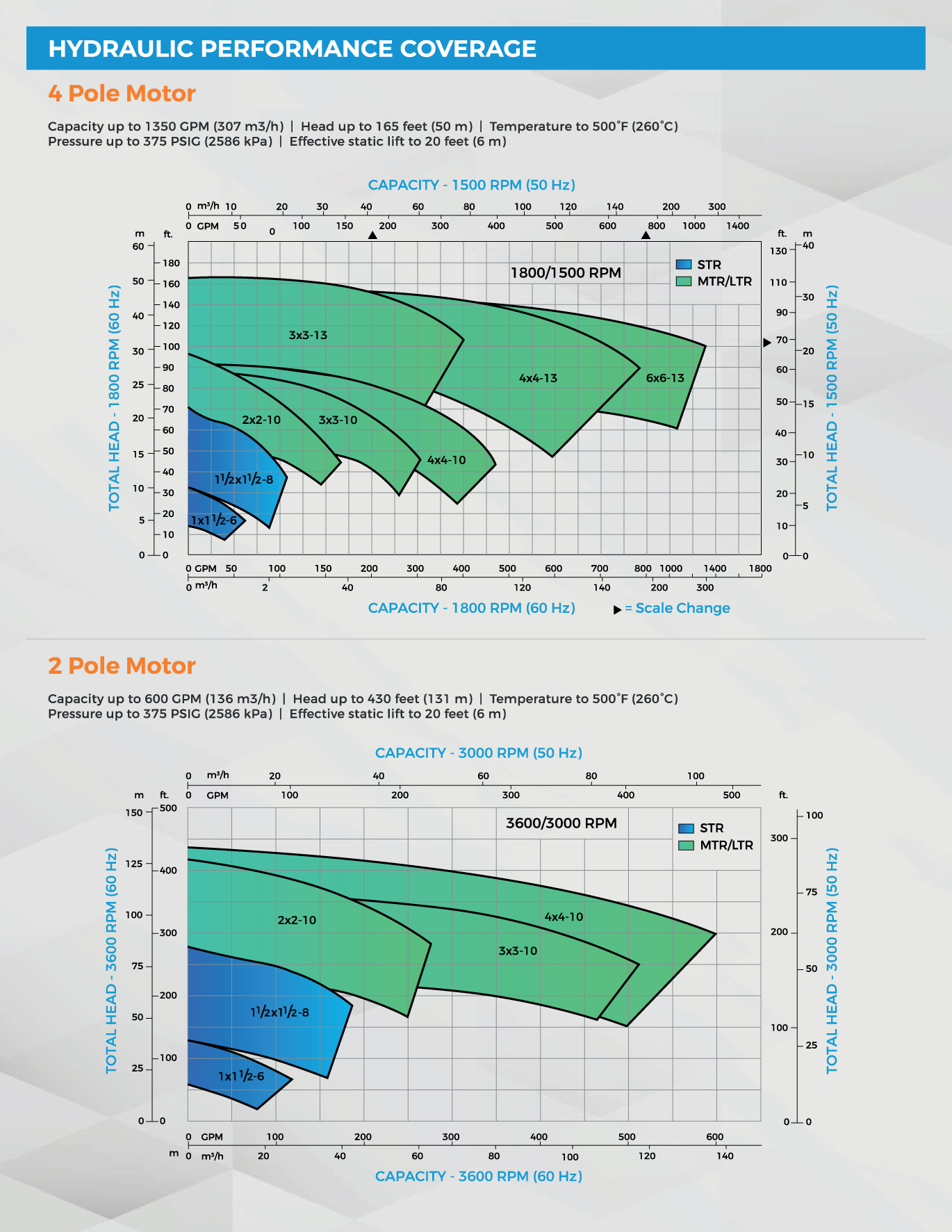

Design Specification
Max Flow Rate
1250 GPM (284 m3/h)
Max Head
430 feet (131 m)
Max Temperature
500° F (260° C)
Max Pressures
375 PSIG (2586 kPa)
Effective static lift
Up to 20 feet (6 m)
Download
Brochure
Manual
Part Cross Reference Sheet
