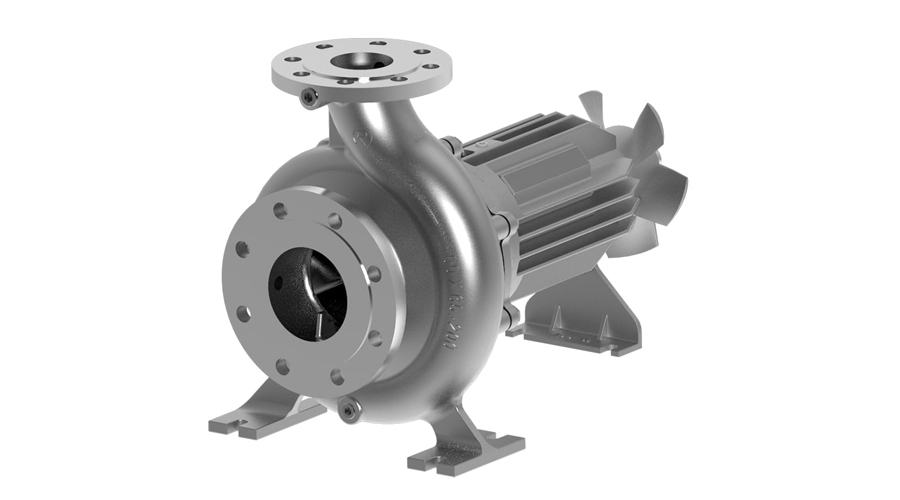

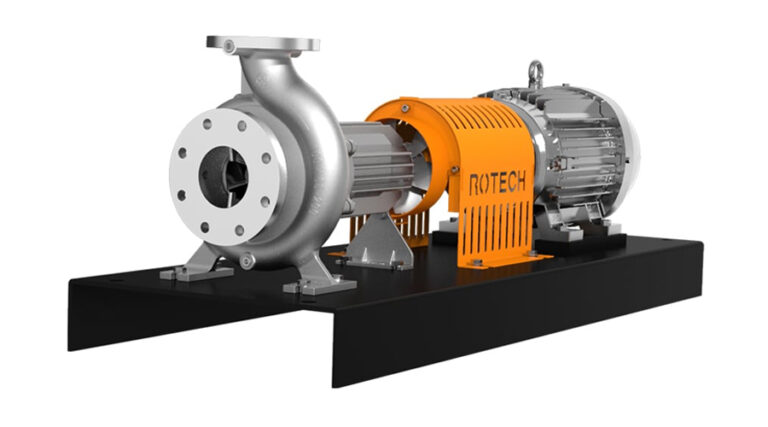

Rotherm Hot Oil Pumps

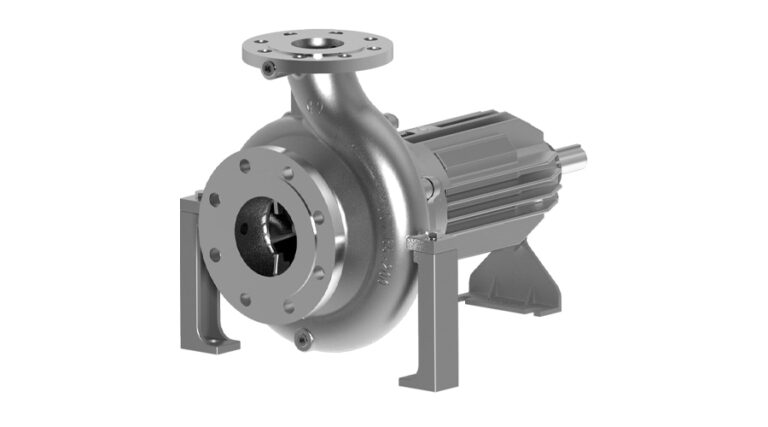

Rotherm Pumps Series is specially designed for high temperature Thermic Fluid applications. Rotherm Casing options are available in foot mounted and Centerline mounted design. It’s finned designed power end works as a radiator which is used to increase surface area of the bearing frame, which helps in lowering bearing temperature.

Add to wishlist
Categories: , , ,

Description

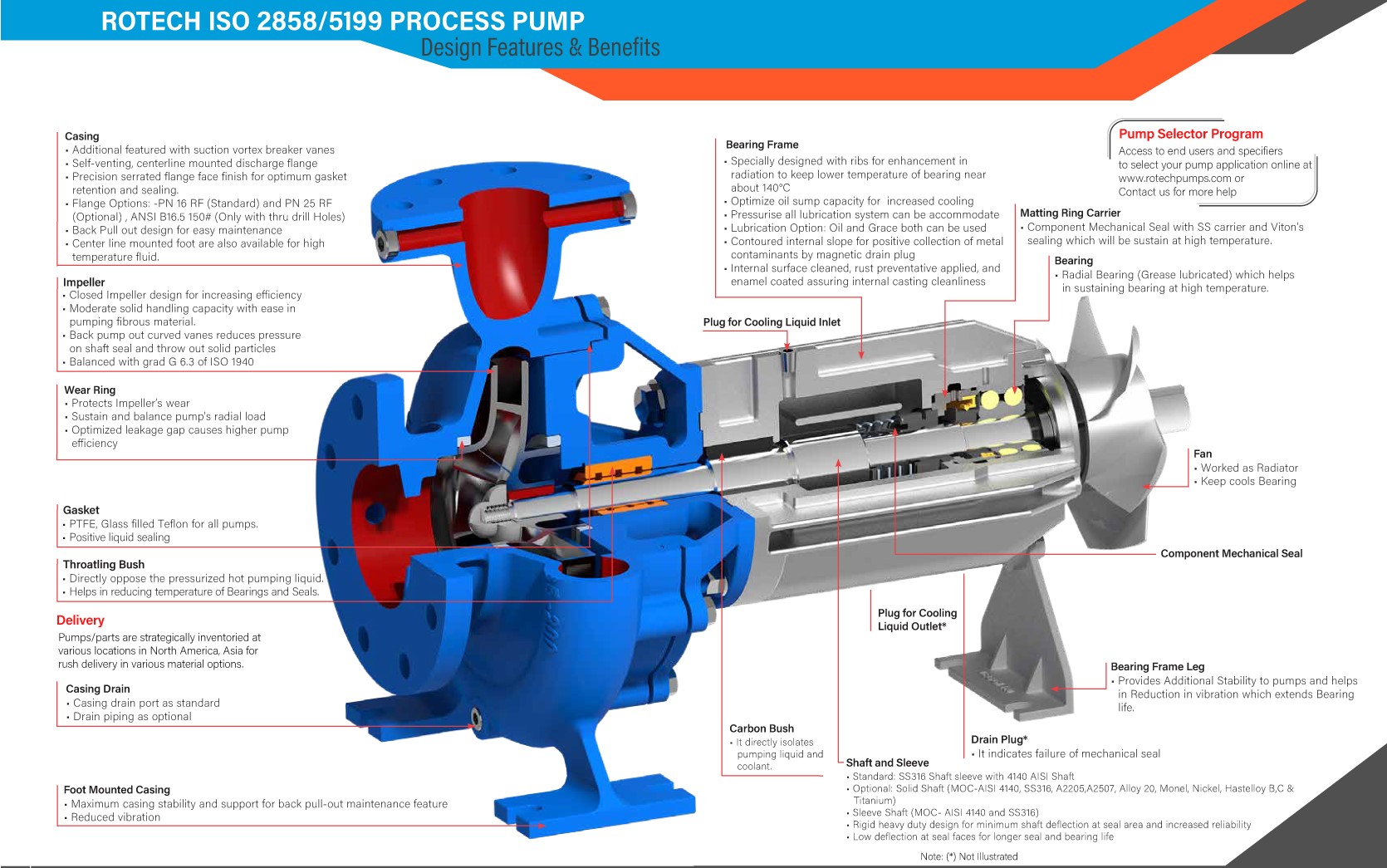

Product Feature
Cost Effective solution for pumping a Thermic fluid like hot water and hot oil.
High temperature range operations

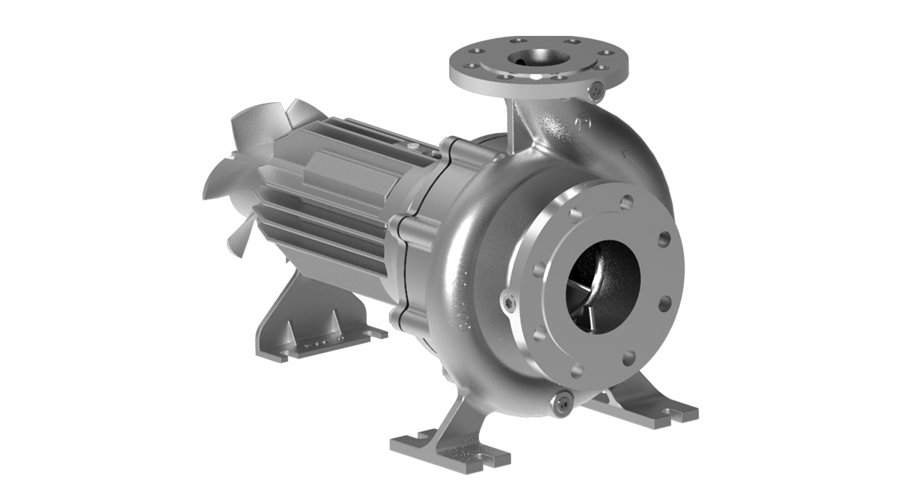

Finned designed power frame Helps to lower temperature and increase pump life
Oil and Grease Lubrication options available.
Technically comply with ISO 5199 and Dimensionally comply with ISO 2858
Suitable for variable-speed applications
Additional Flush port available in Bearing Frame for mechanical seal
Pressurized hot pumping liquid restricted by throttling bush arrangement.
Carbon bush provided in the Bearing Frame to isolate pumping liquid and coolant.

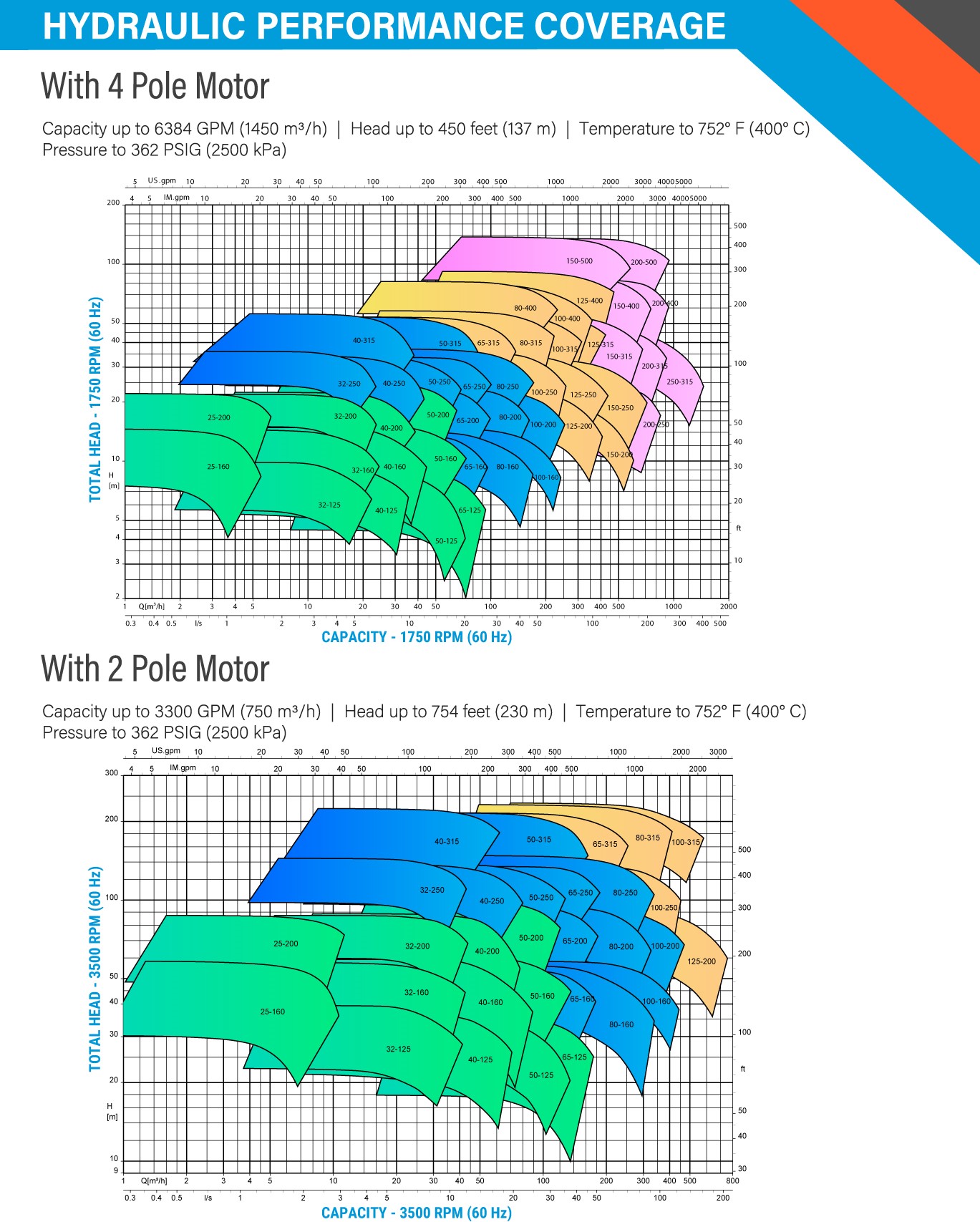

Design Specification
Max Flow
Up to 6384 GPM (1450 m3/hr.)
Max Head
Up to 450 ft. (130 m)
Pressure
Up to 362 PSIG (2500 kPa)
Working Temperature range
-30° to +350°C for Thermal Oil
Up to +180°C for Hot Water
Industries to be served
Refinery
Chemical Industry
Oil Process industries
Food & Beverage industry
Alcohol industry
Fossil- Fueled power stations
Petrochemical industry
