RVMS_Pump

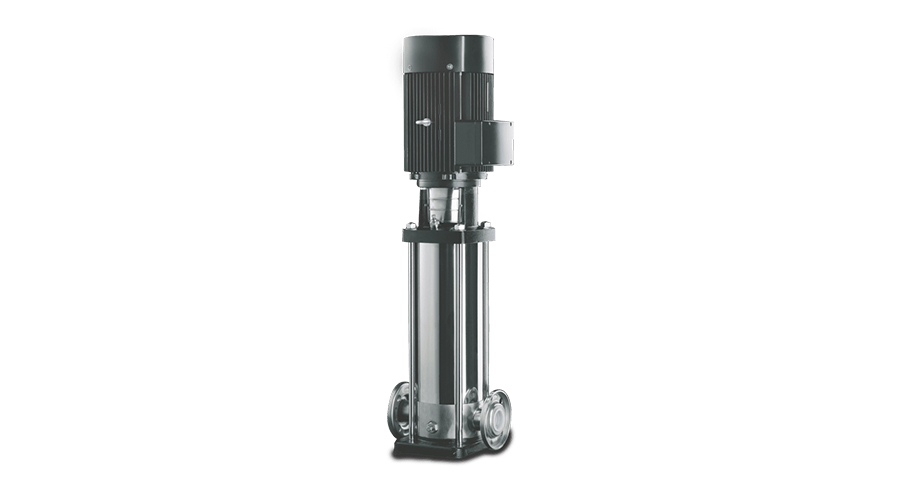

RVMS Series Vertical Multistage Pumps

RVMS pumps are stainless steel vertical Multistage pumps available in wide ranges and size. Pumps are supplied with 150# and 300# ANSI flanges.

Add to wishlist
Category:

Description

Application
RVM type pump is used for pumping non-corrosive liquid, while RVMS/RVP type pump is suitable for pumping slightly corrosive liquid. RVM Pump is provided with cast iron base & cast iron Flange connections, while RVMS is provided with standard cast iron base & Stainless Steel Flange connections. RVP is provided with standard cast iron base & Stainless Steel NPT threaded connections.
Water supply: Water filtration,transporting liquid to Water works, pressure boosting of main line, Pressure boosting in High-Rise buildings.
Industrial: Pressure boosting, Process flow water system, cleaning system, high-pressure washing system, fire-fighting system.
Industrial Liquid transfer, HVAC, boiler feed water application, condensing system.
 Water treatment: Ultrafiltration system, reverse osmosis system, distillation system, separator, swimming pool.
Irrigation: Farmland irrigation, spray irrigation, dripping irrigation.
Pump

RVM/RVMS is vertical non-self priming multistage centrifugal pump, which is driven by a standard electric motor. The motor output shaft directly connects with the pump shaft through a coupling. The pressure-resistant cylinder and flow passage components are fixed between pump head and inlet & outlet section with tie-bar bolts. The inlet and outlet are located at the pump bottom at the same plane.

Operation Conditions
Thin, clean, non-flammable and non-explosive liquid containing no solid granules and fibres.
Liquid temperature: Normal Temperature type: -15°C~+70°C, Hot Water type: -15°C~+120°C
Ambient temperature: upto +40°C
Altitude: upto 1000m
