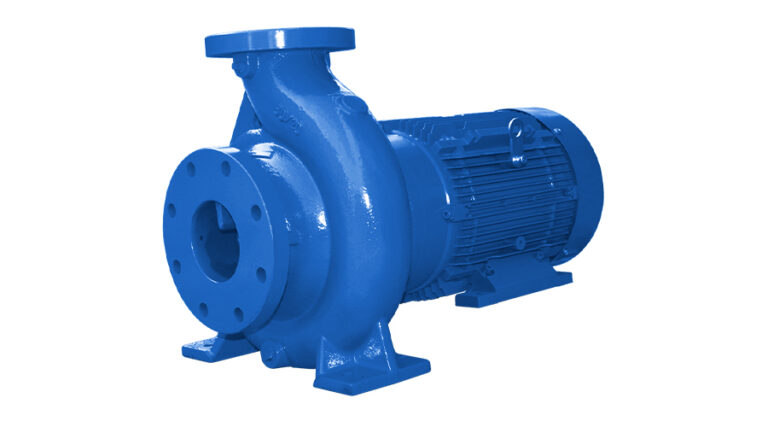

DNJ Close Coupled Centrifugal Pumps

DNJ series pumps are Close Coupled End suction Pumps available in various materials of construction i.e. all iron, CI/BR Fitted, CI/SS304, CI/316SS Fitted, All 316ss Fitted.

DNJ Series pumps are designed for applications in medium duty service, providing maximum pump value in heating and air conditioning, booster and general circulating services.

Add to wishlist
Categories: ,

Description

Product Specifications /Features
DNJ Series pumps are supplied close coupled construction, occupy less space , easy to assemble , interchangeability of parts within series
Casing: Centreline Discharge , Flange connection , 150# Flat Face as standard , Optional : 150# RF , 300# FF , 300#RF
Impeller: Enclosed , dynamically balanced according to ISO 1940 class 6.3 . for smooth, low vibration operation.
The motor/impeller shaft is protected with a replaceable (bronze or SS) sleeve installed between the shaft and mechanical seal.
Mechanical seals : Type 21 , with face type ceramic seat, carbon washer, stainless steel metal parts and Buna elastomers are designed for water service and light hydrocarbons up to 200°F. The seals can be supplied with upgraded material of construction i.e, carbon/ceramic/ viton , Sic/sic/viton and other material of construction

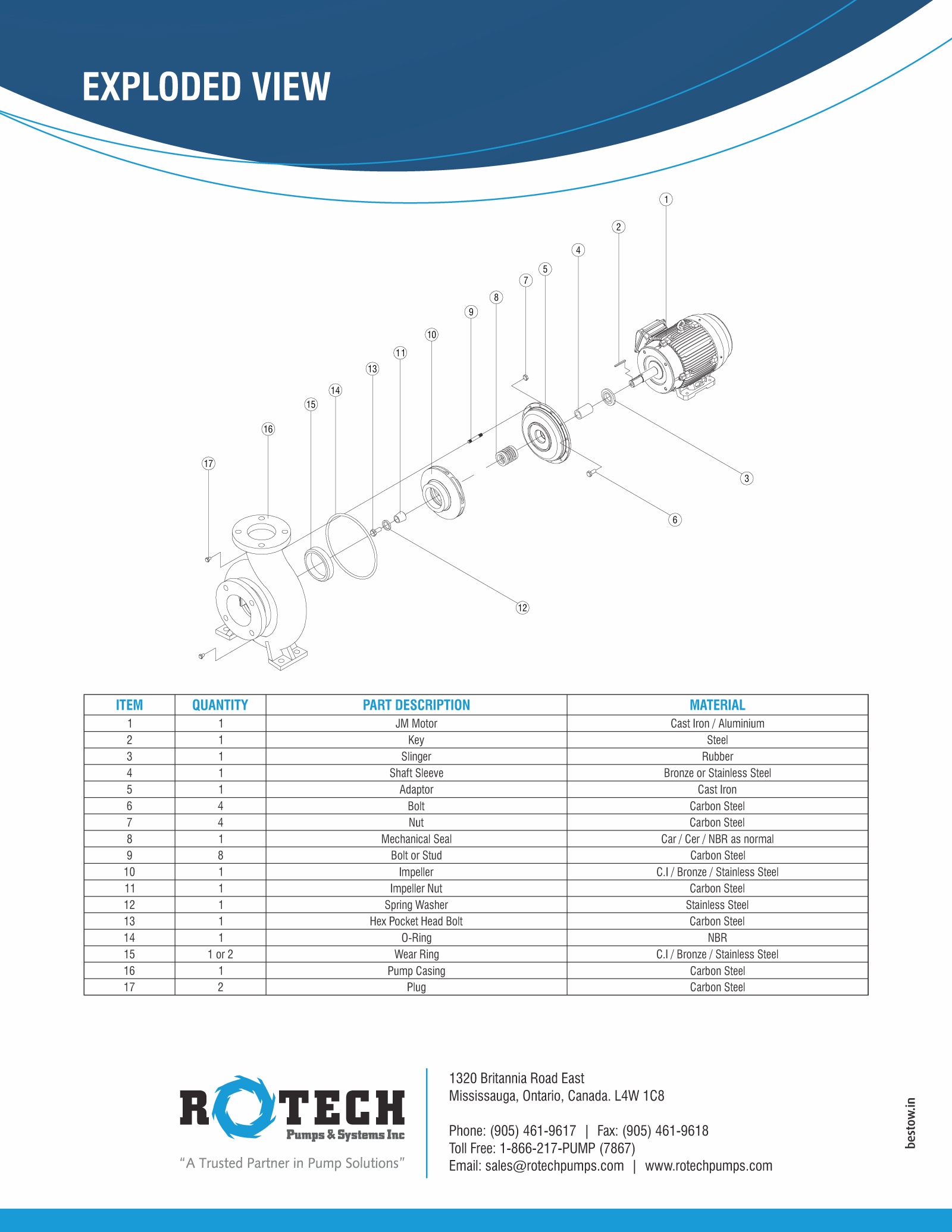

Parts are interchangeable within DNJ series
Applications
Water , Waste water
HVAC
Condensate
High Pressure Process
Sea Water

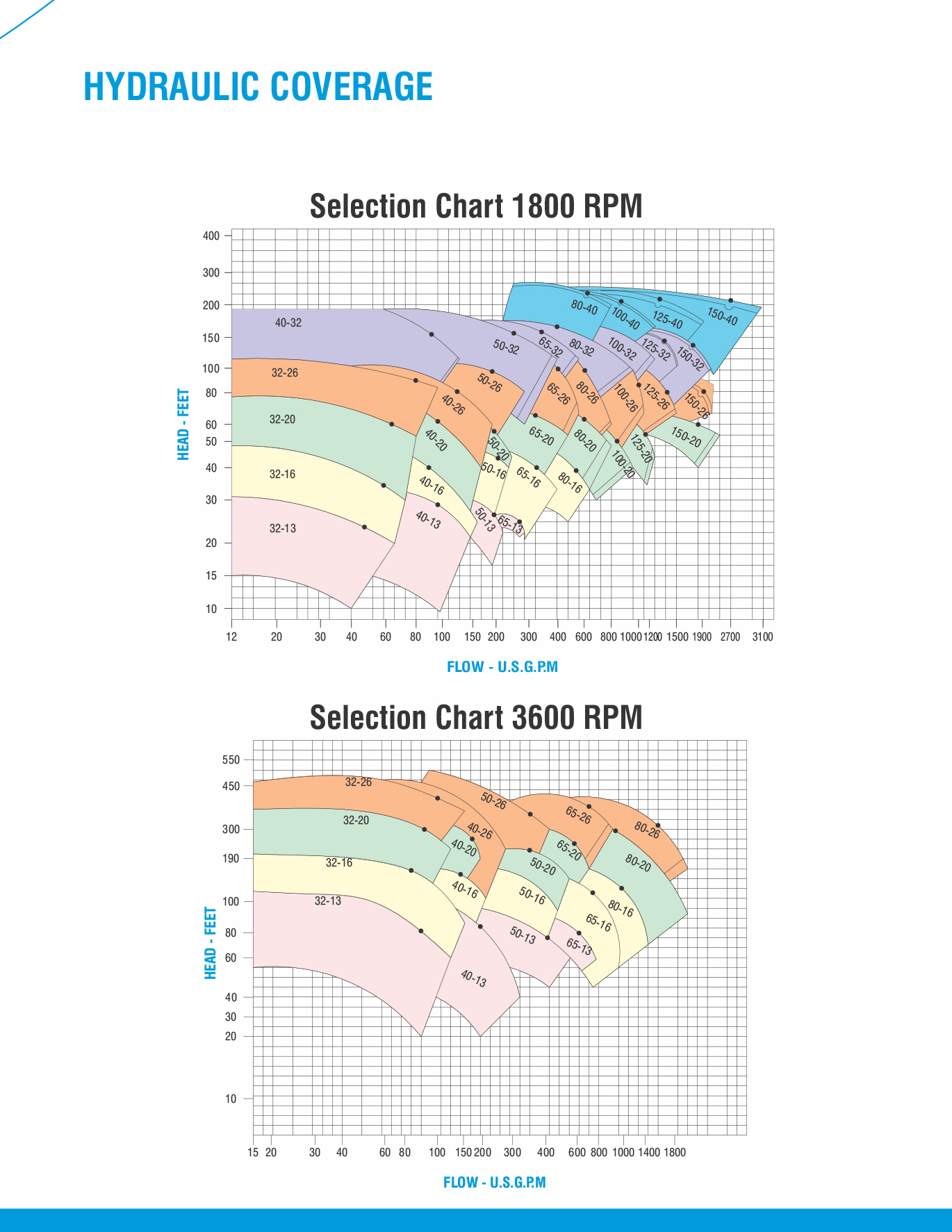

Design Specification
Capacities
Up to 2300 GPM
Horsepower
Up to 100 HP
Liquids
Water and Light Hydrocarbons
Temperature
From 32°F to 200°F
Head
Up to 400 Feet
Materials
Cast Iron, Bronze, Stainless Steel
Pressure
Up to 175 PSI
Drives
NEMA JM Motors
