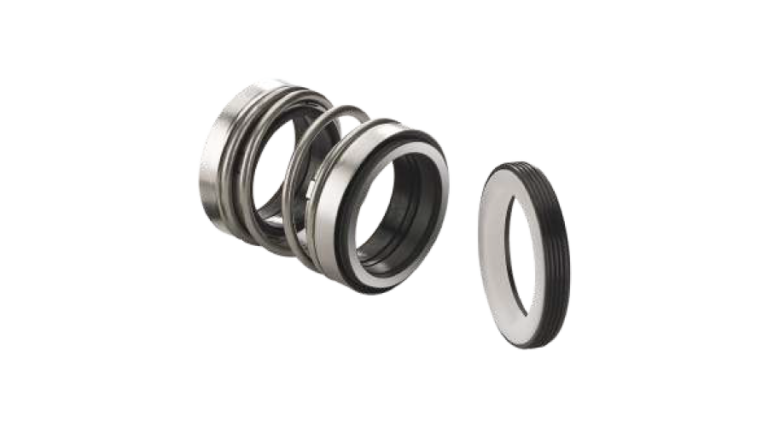

RS1b – Balanced Single Seal For High Pressure

Add to wishlist
Categories: ,

Description

FEATURES & BENEFITS
Balanced face designs allow for higher pump pressures
Machined head available to withstand more rigorous conditions
Antimony impregnated Carbon faces improve durability & heat dissipation
Bellows design enhances alignment capabilities & help compensate for face wear
Bi-Directional
Torque of pump shaft drives through machined drive band & notches
Rugged single spring minimizes clogging in stuffing box
Multiple face & Elastomer choices.
STANDARD MATERIALS OF CONSTRUCTION
Balanced Faces
Antimony - Impregnated Carbon, Silicon Carbide, Tungsten Carbide
Elastomers
Buna, Viton®, Aflas®, Neoprene, EPDM
Metallurgy
304, 316, Monel
Brochure
OPERATING LIMITS
Pressure
Up to 1200 psi (82 Bar g)
Temperature
-40°F to +400°F (-40°C to 204°C)
