RS2-min

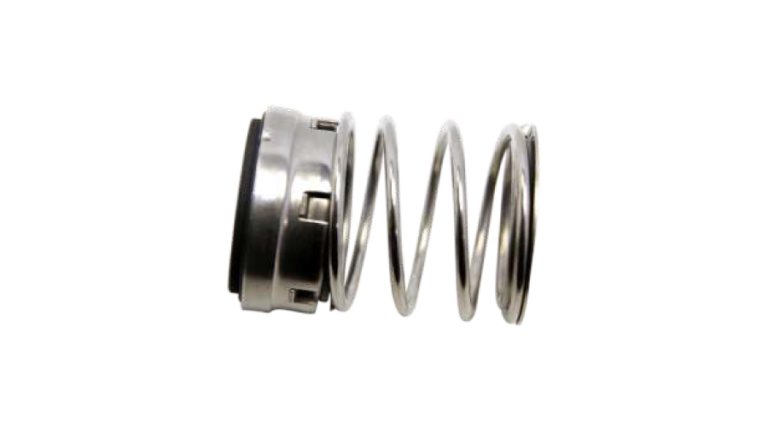

RS2 Single Spring Elastomer Bellows Seal

Add to wishlist
Categories: ,

Description

FEATURES & BENEFITS
Designed for shorter operating lengths than Rs1
Bellows design helps compensates for face wear
Bi-directional
Torque of pump shaft drives through drive band & notches
Rugged single spring
Multiple face & elastomer choices
STANDARD MATERIALS OF CONSTRUCTION
Faces
Carbon Graphite (Resin Impregnated), Antimony Impregnated Carbon, Silicon Carbide, Tungsten Carbide
Elastomers
Buna, Viton®, Aflas®, Neoprene, EPDM
Metallurgy
304, 316, Monel
OPERATING LIMITS
Pressure
to 150 PSI
Temperature
-40°F to +400°F
Download
Brochure
