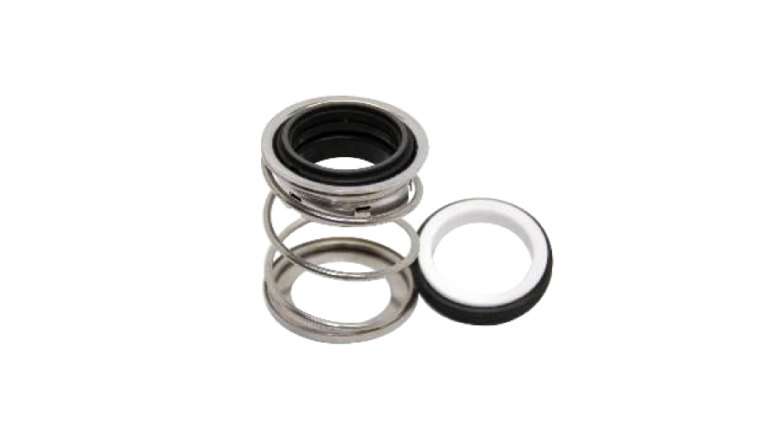

RS210 Metric Single Seal Elastomer Bellow Seal

Add to wishlist
Categories: ,

Description

FEATURES & BENEFITS
Unitized, easy-to-fit design
Bellows design is pressure supported & eliminates creases or folds
Compact design fits DIN 24960, ISO 3069 & ANSI B73.1 M 1991
Positive key drive via drive bands protects bellows from torsional strain
OPERATING LIMITS
Pressure
to 230 PSI (16 Bar)
Temperature:
-40°F to 300°F / -40°C to 150°C
Speed:
Up to 15 m/s / 3000 fpm (Depending on configuration & shaft size)
Brochure
