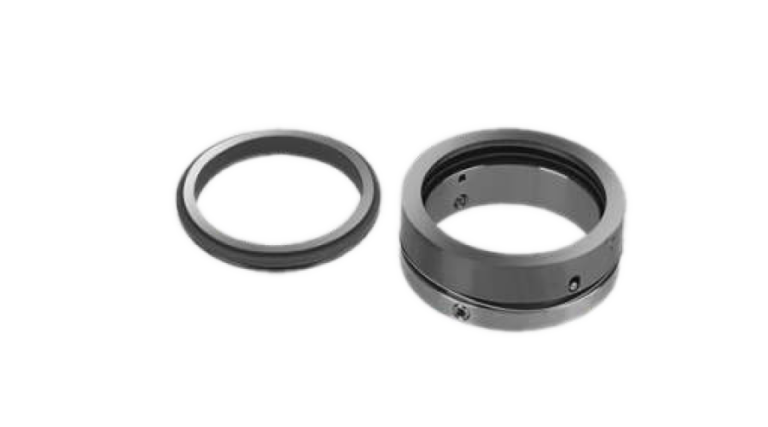

RS307 Compact Wave Spring Seal

Add to wishlist
Categories: ,

Description

FEATURES & BENEFITS
Single Seal
Balanced
Wave Spring
Bi-Directional
Short axial length
Internal & external mounting allowed
RS307S with carbide face shrink-fitted
OPERATING LIMITS
d1 = 10 - 100 mm
p1 = 1.2 Mpa
t = -35 - 160°C
Vg = 15 m/s
STANDARD MATERIALS OF CONSTRUCTION
Rotary Faces
Silicon Carbide, Tungsten Carbide, AISI 304, AISI 316
Stationary Seats
Silicon Carbide, Tungsten Carbide, Carbon Graphite, PTFE (alumina-fitted)
Springs, Collars, Face Housings
AISI 304, 316
Secondary Seals
EPDM, FEP, FPM, FEPM, NBR
Brochure
STATIONARY SEATS
RSS (monolithic short seat)
RSL (monolithic long seat w/ anti-rotation pin slot)
RSLS (face shrink-fitted w/ anti-rotation pin slot)
USS (monolithic short seat, to DIN 24960)
USL (monolithic long seat w/ anti-rotation pin slot, to DIN 24960)
USLS (face shrink-fitted w/ anti-rotation pin slot, to DIN 24960)
