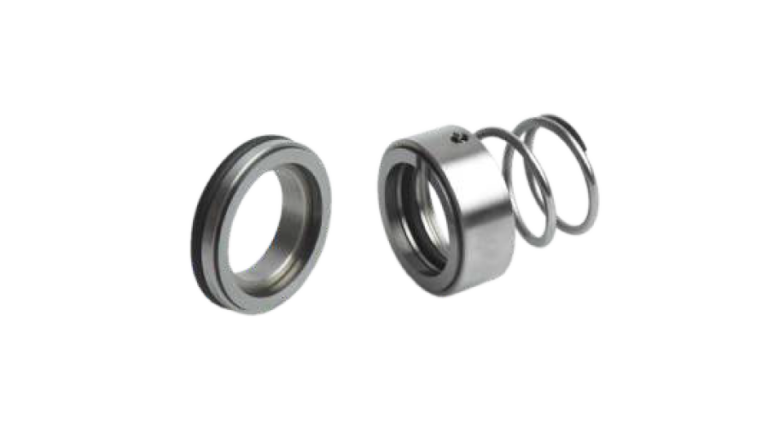

RS5H2 Single Coil O-ring Mounted Seal

Add to wishlist
Categories: ,

Description

FEATURES & BENEFITS
Single Seal
Unbalanced
Uni-Directional
Conical Spring
RS315/316 to DIN 24960
RS305N/306N/315N/316N with narrow rotary face identical to RSS stationary face
FEATURES & BENEFITS
RSS (monolithic Short Seat), Standard for RS305/305N & RS306/306N
RSL (monolithic long seat w/ anti-rotation pin slot)
RSLS (face shrink-fitted w/ anti-rotation pin slot)
USS (monolithic short seat, to DIN 24960), standard for RS315/315N and RS316/316N
USL (monolithic long seat w/ anti-rotation pin slot, to DIN 24960)
USLS (face shrink-fitted w/ anti-rotation pin slot, to DIN 24960)
STANDARD MATERIALS OF CONSTRUCTION
Rotary Faces:
Alumina Ceramic, Cr-Mo Steel, Tungsten Carbide, Silicon Carbide
Stationary Seats:
Carbon Graphite, Silicon Carbide, Tungsten Carbide
Springs, Face Housings:
AISI 304, 316
Secondary Seals:
EPDM, FEP, FPM, FEPM, NBR
OPERATING LIMITS
d1 = 10 - 100 mm
p1 = 1.6MPa
t = -35 - 160°C
Vg = 15 m/s
