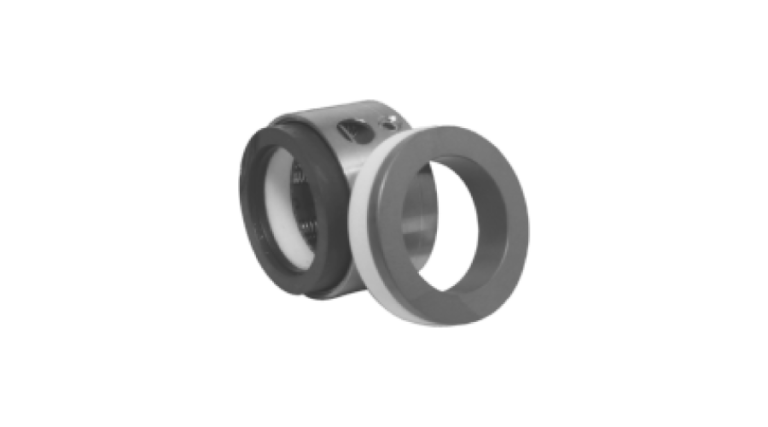

RS675 , 677 – Oring Mounted Balanced Seal

Add to wishlist
Categories: ,

Description

FEATURES & BENEFITS
Single Seal
Balanced
Bi-Directional
Non-welded continuous wave spring available per request
Retainer with pumping screw available as Rs676
STATIONARY SEATS
Gs9 (standard), Gs92 (Carbon only), GS9S (Carbide face shrink fitted)
Gs4
Gs6
Gs13
STANDARD MATERIALS OF CONSTRUCTION
Rotary Faces
Silicon Carbide, Alumina Ceramic, Carbon Graphite, Cr-Mo Steel
Stationary Seats
Silicon Carbide, Carbon Graphite
Spring Collars
AISI 304, 316
Secondary Seals
EPDM, FEP, FPM, FEPM
Brochure
OPERATING LIMITS
d1 = 14 - 100 mm (105 - 200 mm available per request)
p1 = 2.4 Mpa
t = -35 - 160°C
Vg = 20 m/s
