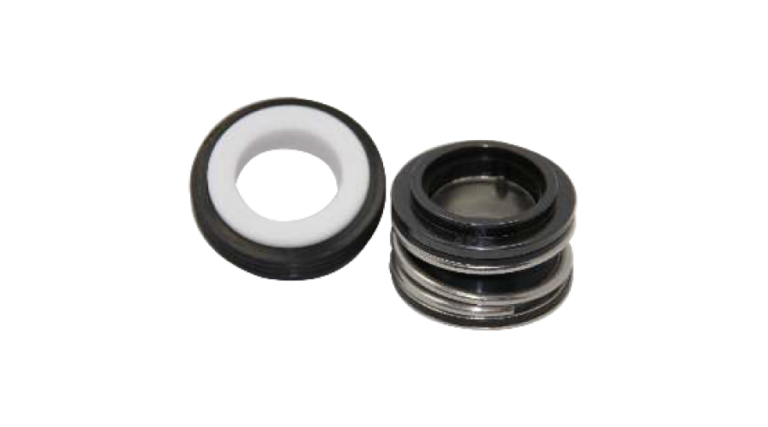

RSMG1 & RSMG12 Single Spring Rubber Bellows

Add to wishlist
Categories: ,

Description

FEATURES & BENEFITS
The world’s most common seal for metric shafts
Very economical seal alternative
Compact rugged design
Seal faces are driven via the spring
No torsional stress on the bellows
Seal faces are encapsulated & protected in rubber bellows
Large rubber cross sections & “surface grab” minimize tears & enhances seal life
Faces match with several common seat designs
Three common operating lengths for each shaft size
Operates independently of shaft rotation
Excellent in fluids with high solid content
STANDARD MATERIALS OF CONSTRUCTION
Faces
Carbon Graphite (Resin Impregnated), Antimony - Impregnated Carbon, Silicon Carbide, Tungsten Carbide
Elastomers
Buna, Viton®, Neoprene, EPDM
Metallurgy
304, 316, Monel
OPERATING LIMITS
Pressure
to 225 PSI / 15 Bar
Temperature
-40°F to +300°F / -40°C to +150°C
