Sanitary Centrifugal Pumps - SAN100 Series

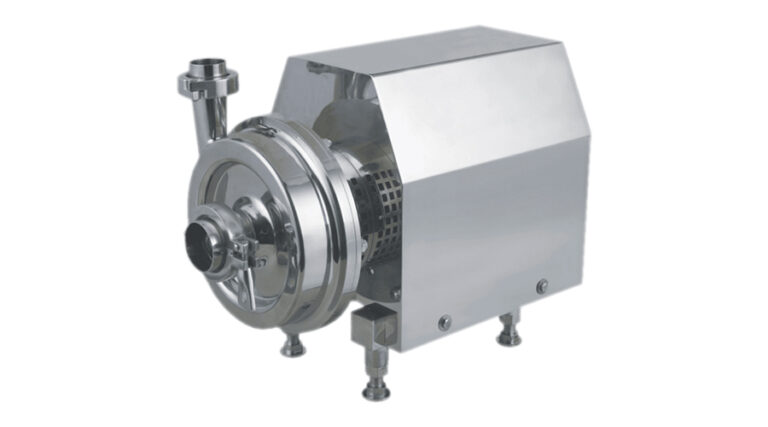

S100 Series Centrifugal Pumps

S100 series pumps sanitary centrifugal pumps are designed to use for Food, Beverage & Pharmaceutical Industries for their various products applications.

Add to wishlist
Category:

Description

Specially for Dairy, Beverage, Beer, Pharmaceutical & Biological Products
Design based on hygienic standard
 Adjustable Stainess Steel Leg
 Mechanical Seal refers to DIN2946 L1K
 Mechanical Seal : Single Mechanical Seal
Flushed single mechanical sealFlushed double mechanical seal
CONNECTION: CLAMP, THREAD, FLANGE, WELDING
Motor Casing :
Cold Rolled Stainless Steel Plate
Gasket
Viton, EPDM
External Surface
 Mirror Polish
Impeller Rotary Speed
 Z9DD rpm (50Hz)
 3600 rpm (60Hz}
Maximum Pressure
7 Bars, S Bars
Connection Standard
DIN, SMS, 3A, 150, IDI RJT
Investment Casting Impeller
AISI 304/ 316L
Mechanical Seal
SiC / SiC / EPDM
Motor Power
 0.55 — 22Kw, 0.55 - 7.5Kw
Capacity :
 1.5 — 120 m'/h
 1.5 - 40 m /h
Maximum Temperature
120°C / 248°F
NEMA & IEC B35 motor
2 stage motor, IP55, Class Insulation, 50Hz / 6DHz
Contact Part with material
AISI 304/ 316/ 316L
Internal Surface
 Ra < 0.8 um
Impeller Type
 Open, Enclosed
Head
75 m (KS), 36 m
Connection
Clamp, Thread, Flange, Welding
Special type of
motor like explosion-proof motor can be furnished as requested.
