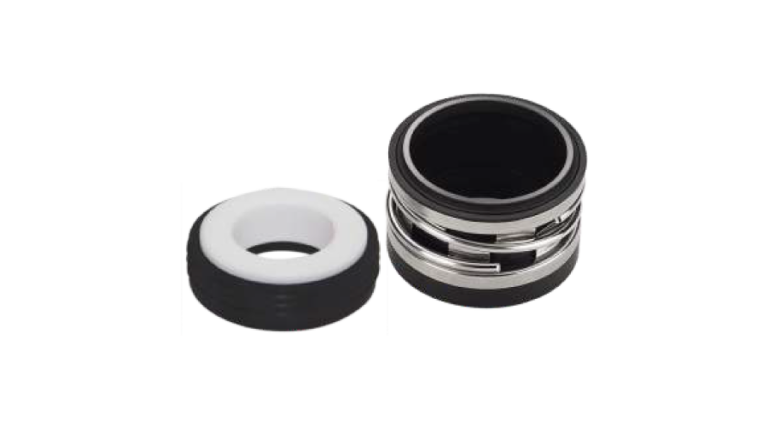

RS210 Single Spring Elastomer Bellows Seal

Add to wishlist
Categories: ,

Description

FEATURES & BENEFITS
Full convolution Bellows design helps compensate for face wear
Bi-directional
Interlocking drive band design allows for positive drive Design fits DIN 24960
Interference fit of seal face minimizes effects of face stick
Equivalent to John Crane® Type 2100, US Seal® Type G
STANDARD MATERIALS OF CONSTRUCTION
Faces
Carbon Graphite (Resin Impregnated), Antimony - Impregnated Carbon, Silicon Carbide, Tungsten Carbide
Elastomers
Buna, Viton®, Aflas®, Neoprene, EPDM
Metallurgy
304, 316, Monel
OPERATING LIMITS
Pressure
150 PSI
Temperature
20°F to +300°F
