RS 60A-min

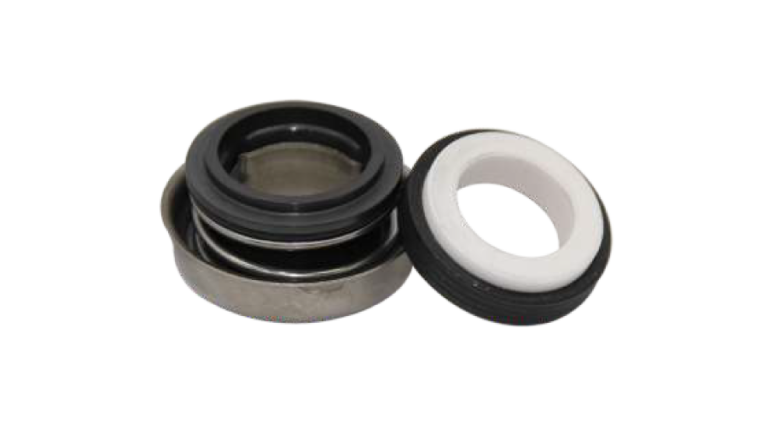

RS60A Single Spring Elastomer Bellows Seal

Add to wishlist
Categories: ,

Description

FEATURES & BENEFITS
Full convolution rubber bellows gives maximum flexibility in compensating for shaft movement
Coil spring gives consistent face loading
Seal face torsional movement is restricted by anti-rotation dent & groove
Pre-assembled for easy installation
Common to many commercial & domestic pumps
STANDARD MATERIALS OF CONSTRUCTION
Faces
Carbon Graphite (Resin Impregnated), Phenolic Carbon, Silicon Carbide
Elastomers
Buna, Viton®, Neoprene, EPDM
Metallurgy
304, 316
OPERATING LIMITS
Pressure
to 75 PSI
Temperature
-40°F to +400°F
